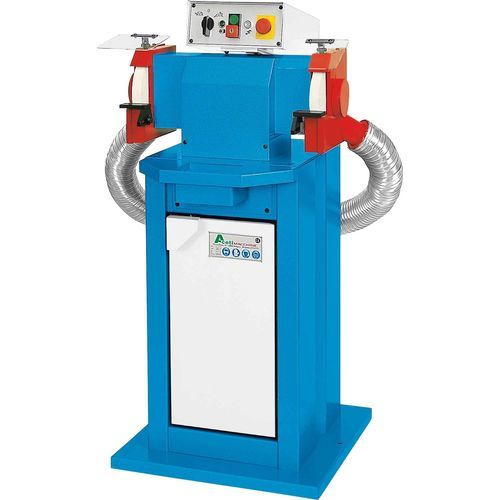

Workpiece grinding machine ART.107
automatic

workpiece grinding machine
workpiece grinding machine
Add to favorites
Compare this product


Characteristics

Applications
workpiece
Control type
automatic
Spindle speed

1,400 rpm
(8,796 rad.min-1)

Power

18.5 kW
(25.15 hp)

Description

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 69 dB Overall dimension (Width x Depth x Height) 720 x 610 x H. 1200 mm Weight standard machine 130 kg Grinder unit Grinding wheel maximum external size ø 300 mm Motor shaft diameter ø 30 mm Grinding wheel maximum wide size 35 mm Peripheral speed 22 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Locking accessories Locking and reducing steel flange for grinding wheel with spacers and clamping nuts. Support Plan special adjustable support according to the diameter of the grinding wheel. Disc grinding wheel Grinding wheel disc mounted on the machine ready for use. Grinder cover Cover with predisposition connection system with predisposition connection system. Anti-spark repair Transparent protection arrester with friction joint.
