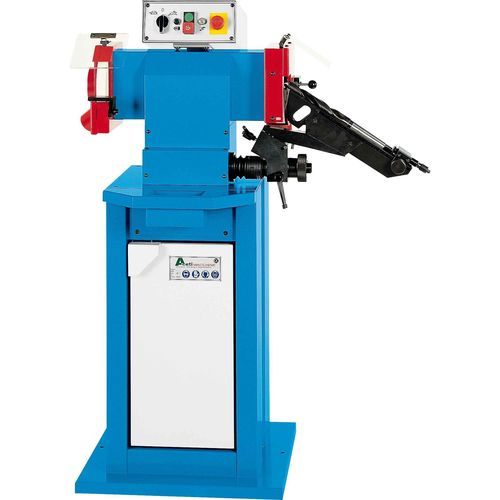

Workpiece sharpening machine ART.100

automatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power 1,9 - 1,1 ( 2,5 - 1,5 ) kW ( hp ) Motor speed 2800 - 1400 rpm Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 950 x 650 x H. 1300 mm Weight standard machine 110 kg Drill sharpener arm "A" Drill diameter 5 ÷ 35 mm Sharpening angle 118 ° Cup grinding wheel dimension ø 200 x 40 x ø 20 mm Peripheral speed 30 - 15 m/sec Grinder unit Grinding wheel maximum external size ø 200 mm Motor shaft diameter ø 20 mm Grinding wheel maximum wide size 25 mm Peripheral speed 30 - 15 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Trailing arm Trailing arm for sharpening twist drills with diameters between Ø5 to Ø35mm.Trailing arm adjustable in axial position, to maintain the minimum distance with the cup grinding wheel.Trailing arm adjustable along the side of the grinding wheel, in order to exploit the whole cutting surface.
