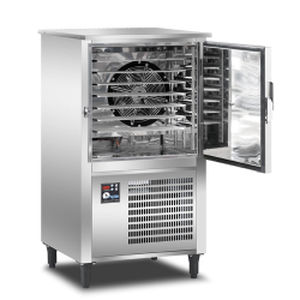

Air blast chiller RS 35industrialhigh-speedrack
Add to favorites
Compare this product
Characteristics
- Material
- air
- Applications
- industrial
- Other characteristics
- high-speed, rack, stainless steel
- Power
636 W, 1,767 W, 2,492 W
(2,170.12 BTU/h, 6,029.25 BTU/h, 8,503.05 BTU/h)- Maximum temperature
-40 °C, -20 °C, -10 °C
(-40 °F, -4 °F, 14 °F)- Flow rate
3,740 m³/h
(132,076.854 ft³/h)
Description
SPECIFICATION
Capacity:
(Grids not supplied)
Compatibility GN 1/1 and 600 x 400 7 pairs of 3 points renforced grid holders included
Blast Chilling:
35 kg, cycle 110 min,
32 kg, cycle 90 min, cooling of mashed potatoes in 5.5 cm thick GN1/1 tray, 5 kgs per level. TT°C reached : in blast chilling +63°C to +10°C core, +3°C product average.
ACFRI Test capacity obtained with an higher loading than the NF Standard (in compliance with real work conditions kitchens).
Deep Freezing:
20 kg, cycle 120 min, raw méat 4cm thick deep freezing : from +3°C to -18°C core T°C.
20 kg, cycle 4FI50, mashed potatoes deep freezing (ACFRI test), +63°C to -18°C to core.
Catalogs
No catalogs are available for this product.
See all of ACFRI‘s catalogsOther ACFRI products
