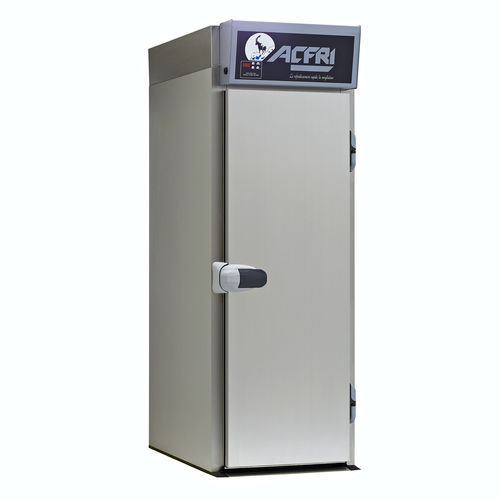

High-performance blast chiller AR 80 HR UC-C80

airfor the food industryhigh-speed

SPECIFICATION Capacity: DELIVERED ASSEMBLED (Trolley(s) not supplied) 1 trolley(s) GN1/1 - 20 levels Compatible with 1 oven trolley(s) Frima Rational GN1/1 Blast Chilling: 80 kg, cycle 80 min, 110 kg, cycle 110 min, cooling of mashed potatoes in 5.5 cm thick GN1/1 tray, 5 kgs per level. TT°C reached : in blast chilling +63°C to +10°C core, +3°C product average. ACFRI Test capacity obtained with an higher loading than the NF Standard (in compliance with real work conditions in kitchens). Deep Freezing: 50 kg, cycle 270 min, mashed potatoes deep freezing (ACFRI test), +63°C to -18°C to core. 40 kg, cycle 120 mn, raw meat 4cm thick deep freezing : from +3°C to -18°C core T°C. Compatible unit with R452A, R448A, R449A, R407F, R404A, fluids (CO2 consutl us) Unit ordered without condensing unit (CU), brazed exp. valves and suction and liquid collectors supplied and mounted by yourself Unit ordered with ACFRI Range X CU, brazed exp. valve(s) R452A and suction and liquid collectors supplied and mounted in our factory Unit ordered with ACFRI Range N CU, brazed exp. valve(s) R448A, R449A and suction and liquid collectors supplied and mounted in our factory For an R407F use, CU, brazed exp. valves and suction and liquid collectors to be supplied by yourself.
