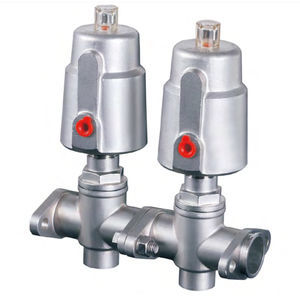

2-way solenoid valve P171NCfor hot waterfor steam
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for hot water, for steam, for natural gas, for oxygen, for hydrogen, oil, for food, fuel oil, for chemical products
- Body
- polyamide, angle seat, stainless steel
- Process connection
- G 1/4, G 1/2, G 3/4, G 1, G 2, G 1 1/4, NPT 1/2
- Other characteristics
- high-pressure, corrosion-resistant, with seal, pneumatically-operated, self-sealing, for aggressive media
- DN
Min.: 0.375 in
Max.: 2 in
- Temperature
Min.: -40 °C
(-40 °F)Max.: 180 °C
(356 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 35 bar
(507.6 psi)
Description
- Anti-water hammer feature with the fluid entry below the seat
- Optical position indicator
- Back pressure resistance capability
- Maintenance free sealing pack
VALVE FEATURES
Fluid viscosity max 600 cSt
Seal PTFE
Packing gland PTFE/FKM
PILOT ACTUATOR FEATURES
Fluid temperatures max +60°C
Body material Polyamide 66 with 30% glass fibre
Gaskets NBR
Actuator Ø70
