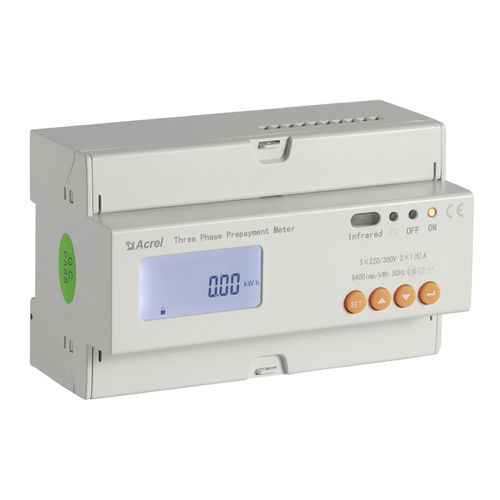

Three-phase electric energy meter ADL300-EY

DIN railRS-48550 Hz

General ADL100-EY single phase pre-paid meters with intro-control, ADL300-EY three phase pre-paid meters with intro-control are used for calculating the single and three phase active energy respectively on the frequency of 50/60 Hz. The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards. ADL300-EY Three Phase Prepaid Energy Meter ● AC 3×220/380V ● 1(6)A,10(80)A ● Prepaid mode ● Alarm for dump energy ● LCD display ● Historical records ● kWh Class 0.5S ● DIN 35 mm Function Accuracy kWh Class 0.5s Frequency 50/60HZ（Optional）, Range：45~65HZ Auxiliary power supply(self supply): 220Vac（L-N）,range:154~264Vac Pulse output: Pulse output kWh Consumption <4VA(Each phase)
