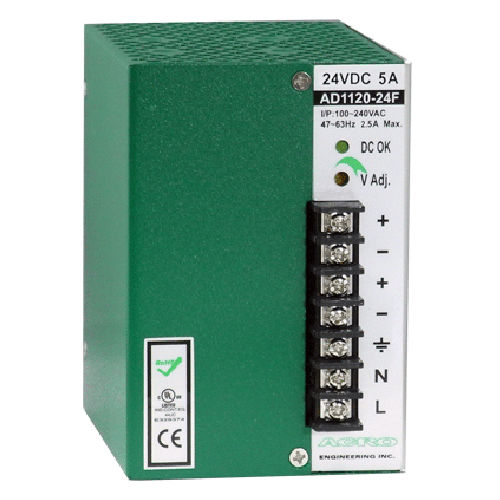

Redundant power supply AD1120FR series

AC/DCmultiple-outputDIN rail

Our DIN Rail power supplies are used for electric machine and battery charger appliances. Rigid and compact design not only space saving but also satisfy the industrial application. Most of the models are built-in power ready signal and O-ring diode for redundant application. The complete output protection circuit including over voltage, overload and short circuit protections. All models are RoHS compliance, CE marking and meet UL508 requirement. INPUT Input voltage:100~240VAC/120~370VDC Input frequency:47~63Hz Inrush current:22A/115VAC (Cold start) 44A/230VAC OUTPUT Hold-up time (Full load@230VAC):20mS Min. Over voltage protection:Autorecovery Overload protection:Power limited Short circuit protection:Autorecovery Features Innovative design of industrial-grade power supply rail Natural convection air cooling High voltage protection Current overload protection Short circuit protection Din rail / retainer lock with fixed protection Selective warning signals (dry contact) / redundancy High power density High reliability Small size, high efficiency, low cost Comply with RoHS / UL / CE Standard 3-year quality warranty Operating Environment Operating temperature: -40 to 40 degrees Operating humidity: non-condensing 5% to 95% relative humidity
