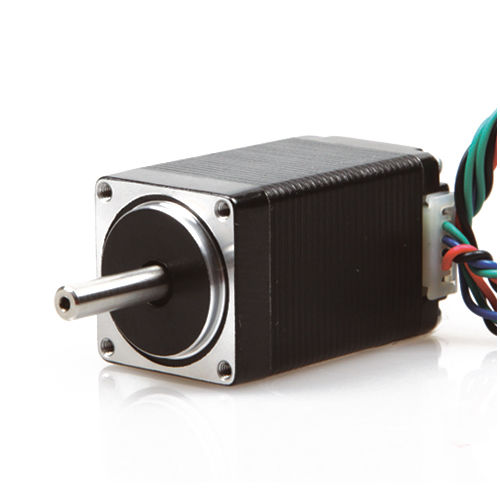

Hybrid stepper motor 11HS series

two-phase

Short Description: Series Model Step Angle Motor Length Rated Voltage Rated Current Phase Resistance Phase Inductance Holding Torque Detent Torque Rotor Torque Lead Wires Motor Weight ( °) (mm) (V) (A) (Ω) (mH) (N.cm) (N.cm Max) (g.c㎡) (NO.) (g) 11HS2403 1.8 28 4.2 0.35 12 5.8 4.5 0.3 6 4 105 11HS2406 1.8 28 2.52 0.6 4.2 2.2 4.5 0.3 6 4 105 11HS3406 1.8 33 3.8 0.67 5.6 3.4 6 0.4 9 4 110 11HS3609 1.8 33 2.66 0.95 2.8 0.8 4.3 0.4 9 6 110 11HS4403 1.8 41 7 0.35 20 15 6 0.5 11 4 140 11HS440... Step Accuracy---------------------------------±5% Temperature Rise----------------------------80℃ Max. Ambient Temperature Range---------- -20℃~+50℃ Insulation Resistance-----------100MΩ Min.50V DC Dielectric Strength-----------------500V AC 1minute
