Non-threaded stud 283-90407-562metalthroughclamping
Add to favorites
Compare this product
Characteristics
- Type
- non-threaded
- Material
- metal
- Fixation
- through
- Other characteristics
- clamping
- Diameter
Max.: 18 mm
(0.71 in)Min.: 4 mm
(0.16 in)- Length
Max.: 174 mm
(6.85 in)Min.: 15 mm
(0.59 in)
Description

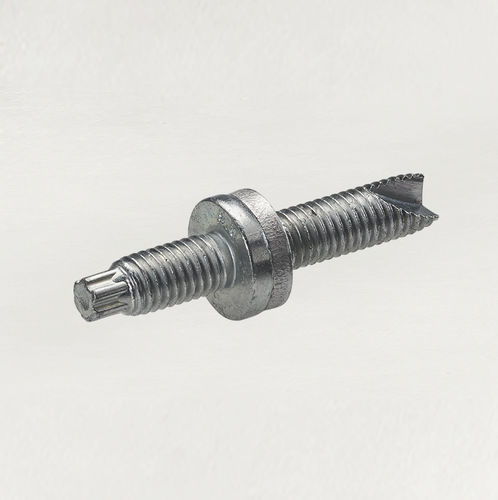

Double Ended Studs
APPLICATION SPECIFIC DESIGNS
Double-ended studs mechanically join separate hardware
through tailored thread body length, pitch and diameter.
Thread bodies are separated by collars that act as
bearing surface features. These features align the studs
for threading and can integrate drive features to fix the
fastener in place.
FEATURES
► Custom thread types, diameters and lengths on either side of the bearing surface
► Custom bearing surfaces that can include a washer
BENEFITS
► One end can be fixed in place to provide a fitting for a separate module
► Part integration of two bolts into one
► One bolt to fix parts made from different materials
