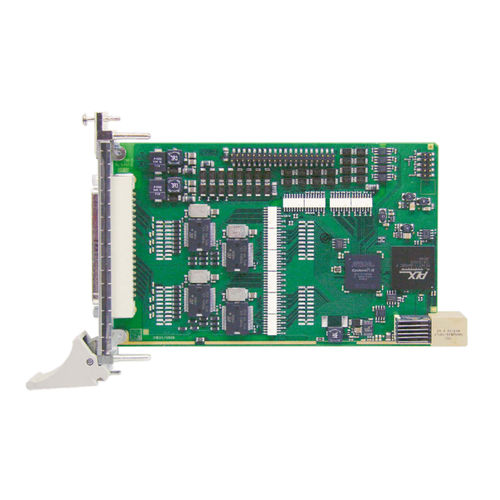

Digital CompactPCI card CPCIs-1564

serial

The CompactPCI Serial 64 digital I/O board CPCIs-1564 has 32 digital inputs, 24 V, and 32 digital outputs, 24 V. 16 inputs are interruptible. The channels 0-2 can be used as 32-bit counter inputs (up to 500 kHz). The board is meant for the industrial I/O board, thus all inputs are filtered and protected against reverse voltage. The inputs and outputs are optically isolated up to 1000 V and protected against fast transients, overvoltage, electrostatic discharge and high-frequency EMI. The board has an extended temperature range from-40 °C up to +85 °C. Features Inputs 32 optically isolated inputs, 24 V, incl. 16 interruptible inputs Channels 0–2 can be used as 32-bit counter inputs (up to 500 kHz) Reverse voltage protection All inputs are filtered Outputs 32 optically isolated outputs, 11 to 36 V Output current per channel 500 mA Total current: 3 A typ. (fused through PTC resistor) Watchdog for resetting the outputs to “0” At Power-On, reset of the outputs to “0” Current limit: ~1.5 A per 8 channels (through PTC) Short-circuit current per output ~1.5 A typ Self-resetting fuse (electronic fuse) Overtemperature and overvoltage protection 24 V power outputs with protection diodes and filters Ext. 24 V voltage supply screened and filtered Shutdown logic, when the external supply voltage drops below 7 V Timer / Watchdog / Counter 2 timers (12-bit resolution), of which one can be used as a watchdog 3 counter (32-bit)
