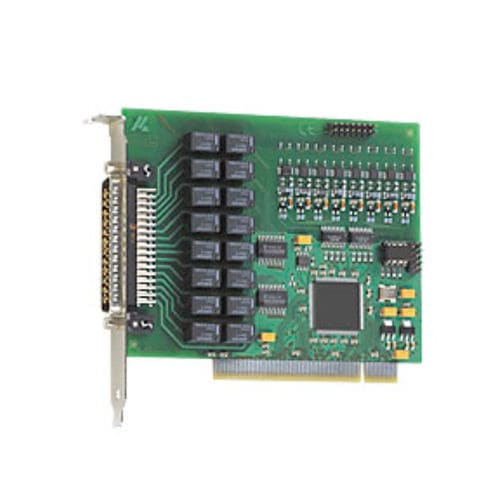

Digital I/O card APCI-2200

PCIsafetyvoltage

The PCI relay board APCI-2200 has 8/16 electromechanical relays with change-over contacts and 8 digital inputs, 24 V. Each relay can be configured as opening contact, closing contact or change-over contact. The maximum switching voltage is 60 VDC/48 VAC, the maximum switching current is 1 A. Up to 16 inputs are available, the inputs are optically isolated up to 1000 V. The board is meant for the harsh industrial environment and thus comes with numerous protective circuits. Features PCI 5 V Relays 8 or 16 electromechanical relays with change-over contacts Max. switching voltage for the relays: 60 VDC, 48 VAC Max. switching capacity: 30 W, max. 1 A Short response time Watchdog: switched on/off through software Digital inputs 8 inputs, optically isolated Input voltage: 12-24 V (DC) Safety features EMC tested Watchdog activity can be read back Optical isolation of the relays Creeping distance IEC 61010-1
