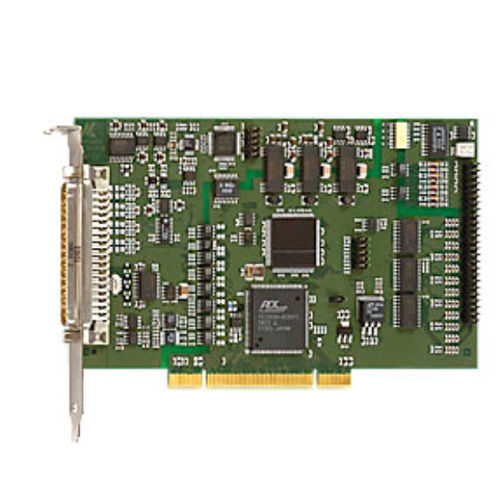

Analog I/O card APCI-3110

digitalTTLPCI

The PCI analog I/O boards APCI-3110 have 16/8 SE or 8/4 differential inputs with a 12-bit resolution and a throughput rate of 200 kHz. The 4 analog outputs have a resolution of 12-bit. Furthermore, the board has 8 digital I/O, 24 V, and 24 TTL I/O. The board is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data, current measurement etc. Features PCI 3.3 V or 5 V Analog inputs 16/8 SE or 8/4 diff. inputs, optically isolated Resolution: 12-bit Throughput: 200 kHz Input voltage: 0-10 V, ±10 V, 0-5 V, ±5 V, 0-2 V, ±2 V, 0-1 V, ±1 V, 0-20 mA (option), freely programmable through software for each channel Current inputs: 0-20 mA (option) can be combined freely with voltage inputs Gain PGA x1, x2, x5, x10 freely programmable through software for each channel Analog acquisition Different input modes: 1) Simple mode 2) Scan modes 3) Sequence modes 4) Auto Refresh mode Onboard FIFO (for 512 Analog values) PCI-DMA for analog data acquisition
