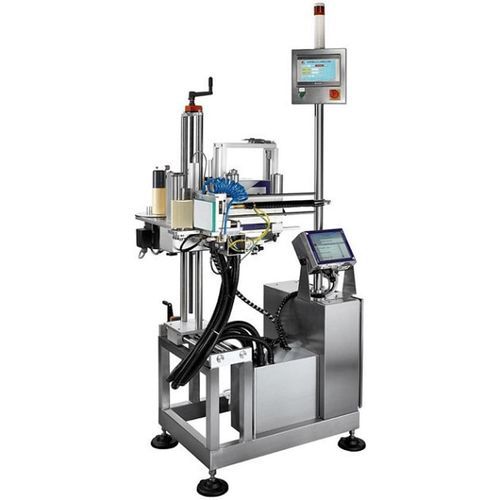

Automatic labeler SL2

wrap-aroundfor the packaging industryhigh-speed

Product overview
Compact, high-performance pallet labelling system SL2 engineered for accurate, efficient pallet label application at end-of-line stations. Designed for tight footprints and straightforward integration with conveyors and coding/marking devices.

Key features

• Compact design for space-restricted lines: Small footprint suitable for factories with limited installation space.
• Flexible mounting orientation: Configurable in any rotation to fit existing line layouts.
• Fast, efficient changeovers: Colour touchscreen with intuitive UI and memory for up to 100 programmes.
• High-speed labelling performance: Dispensing speeds up to 40 labels per minute (depending on configuration).
• Precision label placement: Servo-driven applicator with digital height adjustment for consistent positioning.
• Versatile equipment compatibility: Interfaces with standard coding and marking systems for traceability and compliance.
• User-friendly controls: Colour touchscreen for setup, monitoring and adjustments.
• Durable construction: Stainless-steel frame and anodised aluminium components for industrial use.

Service & Maintenance
Routine maintenance includes visual inspections and standard preventive checks; spare parts and service plans available for production environments.

Operational capabilities & options (from FAQs)

• Container compatibility: Handles flat, oval, round and irregular pallets/loads; custom stabilisation options available for unusual shapes.
• Wrap-around capability: Optional wrap-around module converts front/back labelling to full-wrap application for cylindrical or irregular loads.
• Changeovers: Programmable memory (up to 100 labelling programmes) and touchscreen controls enable rapid changeovers with minimal manual adjustments.
• Construction & conveyors: Heavy-duty stainless-steel frame; compatible with slat or belt conveyors depending on line requirements.
• Power supply: Standard 230 V single-phase electrical supply.

Technical specifications (table)
Label web widths: 125 mm
Label reels: Up to 300 mm outer diameter
Supported core sizes: 44 mm or 76 mm
Label web speed: Up to 40 metres per minute
Product memory: Stores up to 100 labelling programmes
Electrical supply: 230 V single-phase

Caractéristiques / spécifications techniques

• Label web widths: 125 mm
• Accepts label reels: up to 300 mm outer diameter
• Supported core sizes: 44 mm or 76 mm
• Label web speed: up to 40 m/min
• Product memory: stores up to 100 labelling programmes
• Electrical supply: 230 V single-phase
• Construction materials: stainless-steel frame; anodised aluminium components
• Drive & control: servo-driven applicator with digital height adjustment and colour touchscreen interface
• Optional modules: Wrap-Around Module for full-wrap labelling of cylindrical products
