Automatic labeler

for packagingfor bottlesside

Overview

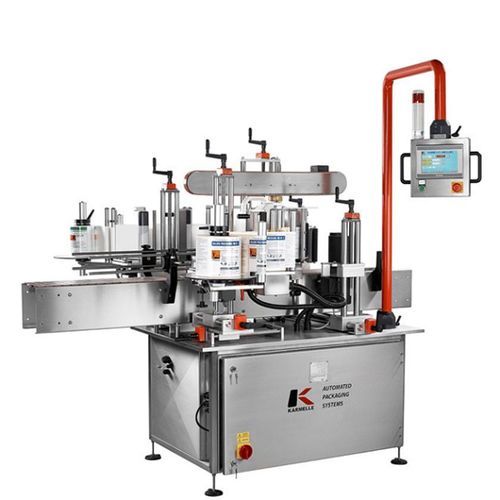

Dual front-and-back side-apply labeller for precise, high-speed application on flat, oval, round and irregular containers. Designed for flexibility, hygiene and throughput on food, beverage, cosmetic and pharmaceutical production lines. Servo-driven mechanics and intuitive controls enable fast changeovers and repeatable label placement.

Key features

• Dual label application: applies front and back labels in a single pass to increase throughput and placement accuracy.
• Flexible product handling: supports flat, oval, round and irregular container shapes.
• Multiple model options: available for label web widths of 125 mm, 175 mm and 225 mm.
• Optional wrap-around module: add-on for cylindrical products and full-wrap labels.
• Precision servo drive system: ensures accurate placement and consistent performance.
• User-friendly control system: colour touchscreen HMI with programmable memory for up to 100 labelling programmes.
• Coding system compatibility: integrates with hotfoil, thermal transfer or inline thermal printers for coding and marking.
• Bespoke configuration: tailored adjustments for alignment, spacing and product stabilisation to meet production needs.
• Hygienic stainless-steel construction: stainless-steel frame with slat or belt conveyor options.
• Ergonomic access: operator settings adjustable from either side for safe and efficient operation.

Technical specifications

• Label web widths: 125 mm, 175 mm or 225 mm
• Maximum label reel diameter: up to 300 mm
• Core size options: 44 mm or 76 mm
• Maximum label web speed: up to 40 m/min
• Product memory: stores up to 100 labelling programmes
• Electrical supply: 230V single phase
• Construction: stainless-steel frame; slat or belt conveyors available
• Optional modules: wrap-around module for full-wrap labelling
