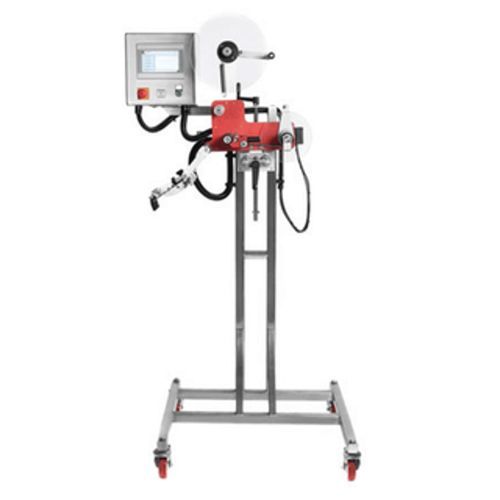

PLC-controlled labeler

for packagingfor bottlesside

Product overview
High-speed servo-driven labeller Flash for accurate application to bottles, containers and side-facing products on food, beverage, cosmetic and pharmaceutical production lines. Compact footprint with mobile stand and intuitive touchscreen for easy integration and operation.

Key features

• Servo-driven label applicator — fast, precise and consistent application up to 200 labels/min.
• Adjustable mounting brackets — vertical and horizontal adjustments for flexible installation.
• Precision product sensor — ensures accurate label placement on variable product formats.
• Stainless steel control box — hygienic construction suitable for strict cleaning regimes.
• Omron PLC control system — reliable automation and straightforward integration.
• Accessories and integration — mobile stand, touchscreen control panel, reel holder and conveyor compatibility for easy line integration.

Typical applications

• Food production lines
• Beverage bottling
• Cosmetics and personal care packaging
• Pharmaceutical and hygienic packaging environments

Technical table
Specification — Value
Label output — Up to 200 per min
Label web widths — 125 mm, 175 mm or 225 mm
Label reels — Up to 300 mm diameter
Core sizes supported — 44 mm or 76 mm
Label web speed — Up to 40 metres per min
Product memory — Stores up to 100 labelling programmes
Electrical supply — 230V single phase

Additional notes from FAQs

• Actual output depends on product dimensions and label size; system capable of up to 200 units/min and web speeds up to 40 m/min.
• Supports label reels up to 300 mm diameter with core sizes 44 mm or 76 mm.
• Stainless steel control box facilitates cleaning and compliance with hygiene standards.
• Omron PLC and adjustable brackets allow seamless conveyor integration.

Characteristics / technical specifications

• Label output: Up to 200 per minute
• Label web widths: 125 mm, 175 mm or 225 mm
• Maximum label reel diameter: Up to 300 mm
• Core sizes supported: 44 mm or 76 mm
• Label web speed: Up to 40 metres per minute
• Product memory: Stores up to 100 labelling programmes
• Control system: Omron PLC
• Control box construction: Stainless steel
• Electrical supply: 230V single phase
• Adjustable mounting brackets for vertical and horizontal positioning
