PLC-controlled labeler

for packagingfor bottlesside

Overview

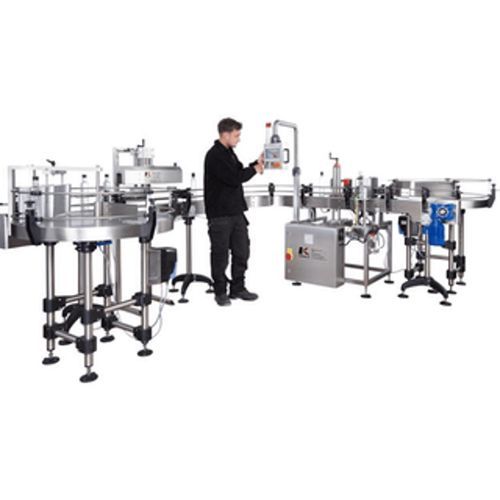

Servo-driven wraparound labelling system for industrial container applications. Precision servo-driven labelling for bottles, containers and side-facing products, designed to boost production efficiency and provide accurate, repeatable label application across a range of industries including food, beverage, chemical and cosmetic production lines.

Key features

• Three-Point Labelling System — combines one powered roller with two static rollers for accurate, stable container handling and superior stability versus standard wrap belts.
• Adelphi Servo Label Applicator (Servo 175) — ensures fast, smooth and precise label application at variable speeds.
• Variable Speed Gapping Device — maintains consistent product spacing for seamless high-speed operation.
• Pneumatically Operated Labelling Station — delivers controlled label transfer for high accuracy.
• Industrial Stainless-Steel Construction — durable, hygienic design suitable for food, beverage, chemical and cosmetic production lines.
• Touchscreen HMI Interface — colour display for simple setup, operation and product changeovers.
• Advanced PLC Control System — integrates low-label and label-out detection with beacon tower alerts for operator visibility.
• Adjustable Configuration — quickly adaptable to different container diameters and shapes using optional change parts; supports recalling stored programmes for fast changeovers.
• Product Sensors and Guide Rails — ensure consistent alignment, positioning and precision throughout the labelling cycle.

Technical specifications
Specification
Label Web Widths: 125 mm, 175 mm or 225 mm
Label Reels: Up to 280 mm
Diameter with Core Sizes: 44 mm or 76 mm
Label Web Speed: Up to 40 metres per min
Product Memory: Stores up to 99 labelling programmes
Electrical Supply: 230V single phase

Characteristics / Technical specifications

• Label web widths: 125 mm, 175 mm, 225 mm
• Maximum label reel: up to 280 mm
• Core diameter options: 44 mm or 76 mm
• Label web speed: up to 40 m/min
• Product memory: stores up to 99 labelling programmes
• Electrical supply: 230 V single phase
• Construction: stainless steel
• Interface: colour touchscreen HMI
