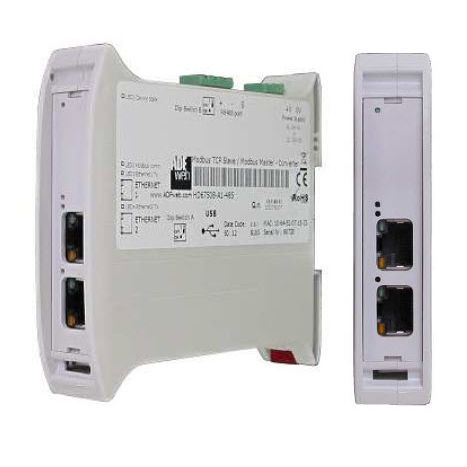

Serial converter HD67601-485-A1ProfiNetDIN rail
Add to favorites
Compare this product
Characteristics
- Bus
- serial, ProfiNet
- Other characteristics
- DIN rail
Description
Ports: - 1xRS485; 2xPROFINET
Data Rates Serial - Up to 115200bps
Data Rates PROFINET - 100 Base-T Autosensing
Serial connector - 3way 5mm terminal block
PROFINET connector - RJ45
Power supply - 8…24V AC; 12…35V DC
Power supply connector - 2way 5mm terminal block
Operating temperature - -40° to +85° (-40°F to +185°F)
Dimensions - 120x23x107 (DxWxH)
Weight - 200g approx
Mechanical fixing - 35mm DIN Rail montage
Software - SW67601
