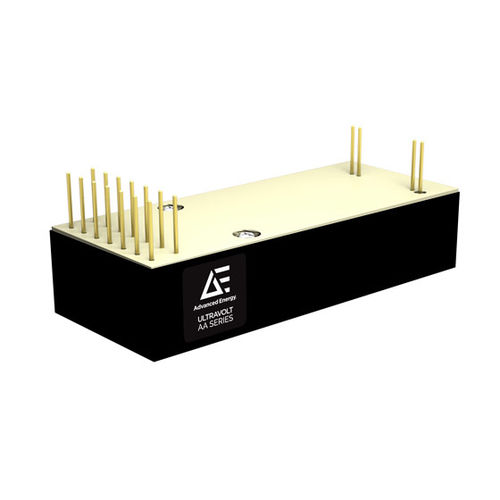

Power DC/DC converter AA

high-voltageprinted circuitcompact

Advanced Energy’s PCB-mount UltraVolt AA series regulated DC-DC converters offer 62 VDC to 6 kVDC up to 30 W, 100 ppm ripple output from 12 or 24 VDC input. The general-purpose high-voltage compact products are solutions for a wide range of applications, including analytical instrumentation, electrostatics and charging, mass spectrometry, and semiconductor manufacturing. With configurable high-voltage output, power, and polarity, the AA series is available with 0 to 5 VDC or 0 to 10 VDC (full-scale) analog interfaces for control and monitoring. Advanced Energy also offers factory-configured mechanical and electrical performance options, including interconnection and shielding, to meet your application needs. Features Configurable high voltage output, power, and polarity in a common footprint Available 0 to 5 VDC or 0 to 10 VDC (full-scale) analog interfaces Control and monitoring of high voltage output and current Selection of electrical, shielding, and mechanical integration options Ripple performance as low as 100 ppm (0.05 Vpp) Benefits Upgrade module and system performance without changing PCB layout Speed time-to-market by simplifying controls integration Improve responsive and control of high voltage output Expand mechanical integration, external RF protection, and interconnection possibilities Increase system repeatability, resolution, and long-term reliability
