DC servo-drive FE060-5-IPM
stepperbrushedbrushless

DC servo-drive - FE060-5-IPM - ADVANCED Motion Controls - stepper / brushed / brushless
DC servo-drive - FE060-5-IPM - ADVANCED Motion Controls - stepper / brushed / brushless
DC servo-drive - FE060-5-IPM - ADVANCED Motion Controls - stepper / brushed / brushless - image - 2
Add to favorites
Compare this product

Characteristics

AC/DC
DC
Motor type
stepper, brushed, brushless
Output signal
USB, Ethernet/IP
Voltage
10-55 V
Other characteristics
PCB, safe torque off (STO)
Intensity

Min.: 5 A

Max.: 10 A

Description

Product overview

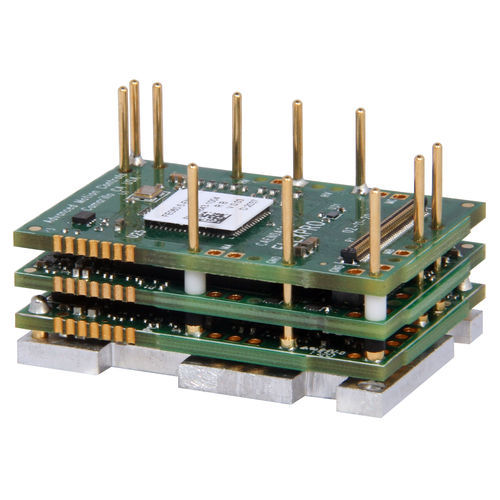

The FE060-5-IPM is a FlexPro® PCB-mount servo drive with IMPACT™ architecture, designed for distributed or centralized servo systems. It provides full tuning control of servo loops, supports Ethernet/IP network communication and is commissioned via a USB interface.

Key features
  • Form factor: PCB mount
  • Family: FlexPro®
  • IMPACT™ architecture with full servo-loop tuning
  • Commissioning interface: USB
  • Network: Ethernet/IP
  • Functional safety: Safe Torque Off (STO)
  • Compact size: 38.1 x 25.4 x 16.0 mm; weight: 22.7 g


Control and command options
  • ±10 V analog
  • Step & Direction (5V)
  • Encoder following
  • Indexing
  • Jogging
  • Over the network
  • Sequencing


Primary feedback
  • BiSS C-Mode
  • EnDat® 2.2
  • Hall sensors
  • Incremental encoder
  • Tachometer (±10 VDC)


Operating modes
  • Profile modes
  • Current control
  • Position control
  • Velocity control


Supported motor types
  • Three-phase (brushless)
  • Single-phase (brushed)
  • Stepper


Documentation & downloads
  • FE060-5-IPM datasheet
  • CAD package (STP, IGS, SLDPRT, STL)
  • FlexPro® PCB Mount HW installation manual
  • Ethernet/IP communication manual (FlexPro) and object dictionary
  • FlexPro® Ethernet/IP EDS and Add-On files
  • FlexPro EtherNet/IP Add-On instructions and wiring recommendations
  • ACE™ configuration software and user guides (installation, quick start, release notes)


Technical specifications
  • Model: FE060-5-IPM
  • Family: FlexPro®
  • Form factor: PCB mount
  • Continuous current: 5 A
  • Peak current: 10 A
  • DC supply voltage: 10–55 VDC
  • AC supply voltage: N/A
  • Network communication: Ethernet/IP
  • Functional safety: Safe Torque Off (STO)
  • Dimensions (mm): 38.1 x 25.4 x 16.0
  • Weight (g): 22.7
  • Commissioning interface: USB
  • Internal architecture: IMPACT™
