DC servo-drive FE060-25-IPM

direct currentstepperbrushed

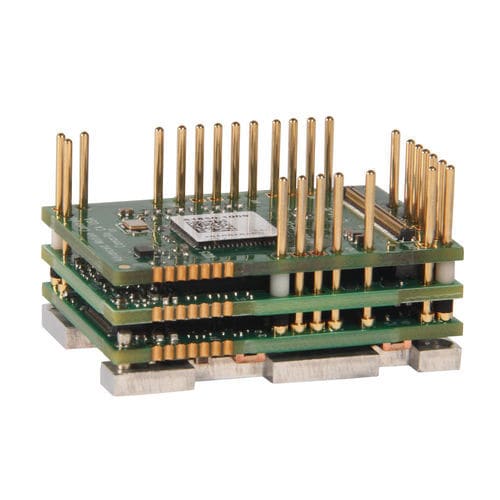

Overview The FE060-25-IPM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes Ethernet/IP communication and is commissioned via a USB interface.

Key Features

• FlexPro® PCB mount servo drive
• IMPACT™ architecture
• Full tuning control of all servo loops
• Designed for distributed or centralized servo systems
• Ethernet/IP network communication
• Commissioned via USB interface
• Functional Safety: Safe Torque Off (STO)

Control / Command

• ±10 V Analog
• Step & Direction (5V)
• Encoder Following
• Indexing
• Jogging
• Over the Network
• Sequencing

Primary Feedback

• BiSS C-Mode
• EnDat® 2.2
• Halls
• Incremental Encoder
• Tachometer (±10 VDC)

Operating Modes

• Profile Modes
• Current
• Position
• Velocity

Motor Types Supported

• Three Phase (Brushless)
• Single Phase (Brushed)
• Stepper

Product Downloads (documents & resources)

• FE060-25-IPM Datasheet
• Zipped CAD folder containing STP, IGS, SLDPRT, and STL models
• FlexPro® PCB Mount HW Installation Manual
• Ethernet/IP Communication Manual (FlexPro)
• FlexPro® Ethernet/IP EDS and Add-On Files
• FlexPro EtherNet/IP Add-On Instructions
• FlexPro Wiring Recommendations

Application Notes (examples)

• App Note 003 — DigiFlex® Performance™ Drive Peak Current Recovery
• App Note 023 — Ferrite Recommendations
• App Note 027 — Motion Engine, configure internal motion generator for indexing and sequences
• App Note 028 — Mode Switching, hot switch between modes and gain settings for select digital drives
• App Note 030 — AC Induction Current Loop Tuning
• App Note 034 — Programmable Limit Switch (PLS) Examples
• App Note 035 — Sequencing Overview and Examples
• App Note 037 — Stepper Motor Setup Process
• App Note 040 — Absolute Feedback Configuration
• App Note 041 — DigiFlex® Performance™ Drives in High-Speed Applications
• App Note 050 — Troubleshooting USB and RS232 Connection Issues
• App Note 062 — Home to Hard Stop

Compliance & Approvals

• CE (Class A Electromagnetic Compatibility and LVD)
• Functional Safety (FlexPro® Servo Drives with Safe Torque Off)
• ISO 9001:2015
• REACh
• RoHS III
• UL (file number E140173 for US and Canadian safety compliance)
• CMRT (Conflict Mineral Reporting Declaration)

Technical specifications

• Form Factor: PCB Mount
• Family: FlexPro®
• Product Status: Active
• Continuous Current (A): 25
• Peak Current (A): 50
• DC Supply Voltage (VDC): 10 - 55
• AC Supply Voltage (VAC): -
• Network Communication: Ethernet/IP
• Functional Safety: Safe Torque Off (STO)
• Size (mm): 38.1 x 25.4 x 16.0
• Weight (g): 22.7
