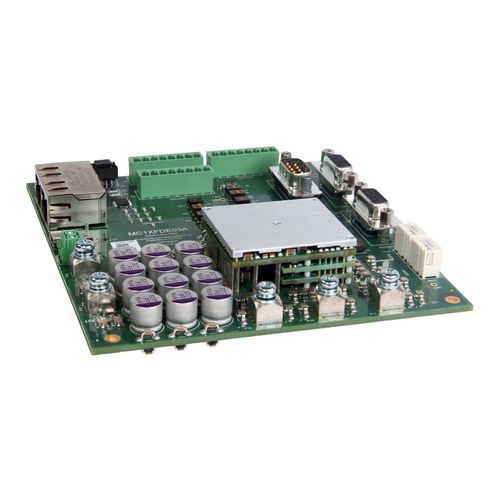

DC servo-drive FD100-50-IPMsingle-phasethree-phasebrushless
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC, three-phase, single-phase
- Motor type
- brushless, brushed, stepper
- Output signal
- analog, Ethernet, with Ethernet interface
- Product applications
- for servo motors
- Voltage
- 20-90 V
- Other characteristics
- integrated, servo-driven, safe torque off (STO)
- Intensity
Min.: 50 A
Max.: 100 A
Description
Product Overview
The FD100-50-IPM is a servo drive and development board assembly for a FlexPro® FE100-50-IPM servo drive with IMPACT™ architecture. Standard connectors provide simplified connections to controller, motor, power and feedback interfaces. The board is designed for prototyping and is suitable for production and industrial use.
Control / Command
Primary Feedback
Operating Mode
Motor Type
Product Downloads & Software (titles only)
Technical Characteristics / Specifications
The FD100-50-IPM is a servo drive and development board assembly for a FlexPro® FE100-50-IPM servo drive with IMPACT™ architecture. Standard connectors provide simplified connections to controller, motor, power and feedback interfaces. The board is designed for prototyping and is suitable for production and industrial use.
Control / Command
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
Primary Feedback
- BiSS C-Mode
- EnDat® 2.2
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
Operating Mode
- Profile Modes
- Current
- Position
- Velocity
Motor Type
- Three Phase (Brushless)
- Single Phase (Brushed)
- Stepper
Product Downloads & Software (titles only)
- FD100-50-IPM Datasheet
- FlexPro® PCB Mount HW Installation Manual
- Ethernet/IP Communication Manual (FlexPro)
- FlexPro® Ethernet/IP EDS and Add-On Files
- FlexPro EtherNet/IP Add-On Instructions
- FlexPro Wiring Recommendations
- ACE™ Software (configuration software for FlexPro™ digital servo drives)
- ACE™ User Manual
- ACE™ Quick Start Guide
- ACE™ Release Notes
- Multiple Application Notes (App Note 003, 023, 027, 028, 030, 034, 035, 037, 040, 041, 050, 062, etc.)
- Instructional video content (e.g., Proper Wiring Practices)
Technical Characteristics / Specifications
- Form Factor: Development Board
- Family: FlexPro
- Product Status: Active
- Current Continuous (A): 50
- Current Peak (A): 100
- DC Supply Voltage (VDC): 20 - 90
- AC Supply Voltage (VAC): -
- Network Communication: Ethernet/IP
- Functional Safety: Safe Torque Off (STO)
- Size (mm): 133.4 x 127.0 x 19.0
- Weight (g): 283.5
Catalogs
No catalogs are available for this product.
