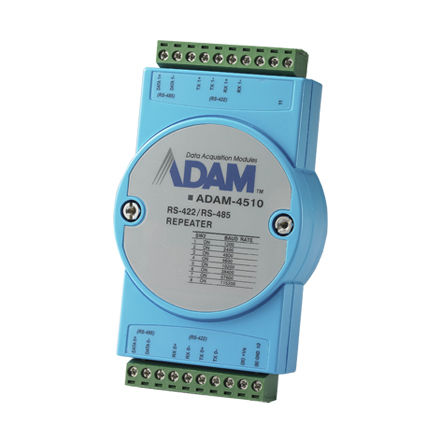

Communication repeater ADAM-4510

RS-485transmission

. Automatic RS-485 data flow control . Surge protection RS-485 data line . Transmission speed up to 115.2 Kbps . Networking up to 1200 meters (4000 feet) . LED indicator to monitor status The ADAM-4510 repeaters simply amplify, or boost, existing RS-485 signals to enable them to cover longer distances. They extend the communication distance by 4000 ft (1200 m) or extend the number of connected nodes by 32. LED Indicators - Comm Power Supply* - Power Requirement - 10~30 VDC General - Temperature (Operating)* - -10~70 °C (14~158 °F) Humidity* - 5~95 %RH Temperature (Storage)* - -25~85 °C (-13~185 °F) Interface* - RS-422 RS-485 Isolation Protection* - 3,000 VDC Communication Speed* - 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k, RTS control and RS-422 (switchable) Comm. Distance* - Serial: 1.2 km Connector* - 2 x plug-in terminal blocks (#14 ~ 22 AWG) (RS-422/485)
