double-conversion UPS / three-phase / single-phase / industrial

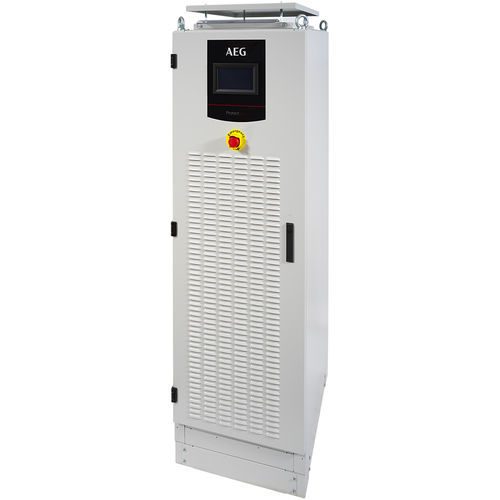

PROTECT FLEX series

{{requestButtons}}

Characteristics

  • Type:

    double-conversion

  • Electrical characteristics:

    three-phase, single-phase

  • Applications:

    industrial, power distribution, for harsh environments

  • Other characteristics:

    modular, Eco mode, rugged

  • Output power kVA:

    10 kVA, 15 kVA, 20 kVA, 30 kVA, 40 kVA (13.6 hp)

Description

The Protect Flex of AEG Power Solutions is a new UPS system concept that combines a modular architecture based on 10 and 15 kVA/kW hot swappable power modules, with a large customizable set of options. The system has a robust design which encapsulates AEG Power Solutions’ unmatched expertise for industrial applications. It is suitable for harsh environments and is the only one in its category to be configurable to all electrical system schemes with the benefit of power modularity.

The UPS provides all the following features:
On-line double conversion UPS with an internal modular design
Optional transformers (inbuilt or external cabinet) available to meet all types of voltage requirements as well as electrical isolation when needed
N+1 inbuilt power redundancy architecture
VFI SS 111 technology (up to 94 % efficiency)
ECO Mode available (up to 98 % efficiency)
Input PF > 0.99, THDi < 4 % (without additional filters)
Output PF up to unity and compatible with inductive or capacitive loads without derating
Ingress protection up to IP43 (more rugged environmental protection available upon request)
Integrated static and manual bypass lines
Parallel capability up to 160 kVA (4 x 40 kVA in parallel)
7" color Touch Screen graphic
Connectivity options: SNMP, Modbus, BACnet®
Phase configuration options: 1/1, 3/1 and 3/3
Large set of functional options to meet all specific requirements and challenging conditions
