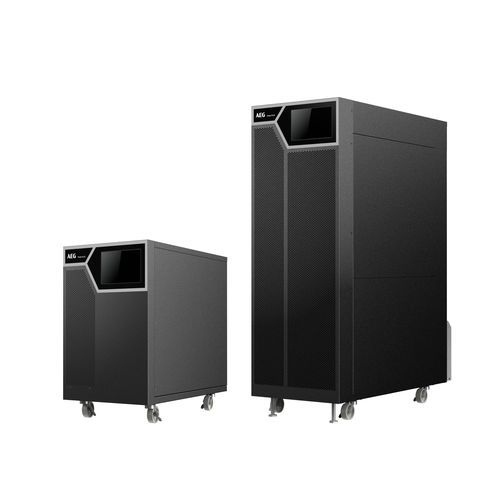

Double-conversion UPS Protect Plus S400

three-phaselithiumVRLA

Overview
Protect Plus S400 is a transformer-less online UPS offering compact footprint and flexible configurations. Using full IGBT double-conversion technology (VFI-SS-11), it delivers low input THDi and near-unity input power factor. The system supports ECO mode, reaching efficiencies > 99%. Protect Plus S400 is designed for critical applications requiring high power quality, efficient energy use, availability and limited installation/service space. It combines high battery-charging capability and a compact design to protect sensitive loads.

Benefits

• Front access to main components for easy installation, operation and maintenance; simple parallel upgrade
• Unity output power factor: 1 kVA = 1 kW
• High-capacity charger for extended backup times with appropriate battery configuration
• Space, cabling and protection device savings and optimized power management
• Full control and parameter configuration via user-friendly HMI display

Features

• Transformer-less full IGBT architecture
• Classification VFI-SS-11
• Output power factor up to 1
• AC/AC efficiency > 95% (VFI) and > 99% in VFD (ECO) mode
• Flexible battery options: VRLA and Lithium*
• High MTBF and low MTTR
• Parallel operation up to 4 units
• Optimized battery management
• Optional frequency converter
• Wide range of options

Highlights
CAPACITY: 20-80 kVA
INPUT PHASES: 3PH+N+G
INPUT VOLTAGE: 380 / 400 / 415 V
OUTPUT PHASES: 3PH+N
OUTPUT VOLTAGE: 380 / 400 / 415 V

Accessories

• Mechanical: IP21 accessory for 20-40K; IP21 accessory for 60-80K
• Communications: AEG Network Card; S400 ModBus Card; S400 Relay Card; S400 Battery temperature sensor

Technical specifications

• Capacity: 20 - 80 kVA
• Input phases: 3PH + N + G
• Input voltage (nominal): 380 / 400 / 415 V
• Output phases: 3PH + N
• Output voltage (nominal): 380 / 400 / 415 V
• Rated power (kVA / kW) variants: 20/20, 30/30, 40/40, 60/60, 80/80
• Dimensions (W x D x H mm): 20 kVA = 330 x 700 x 525 mm; 30 kVA and 40 kVA = 330 x 772 x 977 mm; 60 kVA and 80 kVA = 330 x 772 x 977 mm
• Weight (kg): 20 kVA = 45 kg; 30 kVA = 48 kg; 40 kVA = 48 kg; 60 kVA = 96 kg; 80 kVA = 96 kg
• Voltage range (V) (ph-n / ph-ph): 116 ÷ 190 / 200 ÷ 329 @ 50% load; 190 ÷ 276 / 329 ÷ 478 @ 100% load
• Nominal bypass input voltage: 230 V (phase to neutral) / 400 V (phase to phase)
• Frequency: 50 / 60 Hz
