Double-conversion UPS Protect PLUS M500

parallelthree-phasemodular

Overview

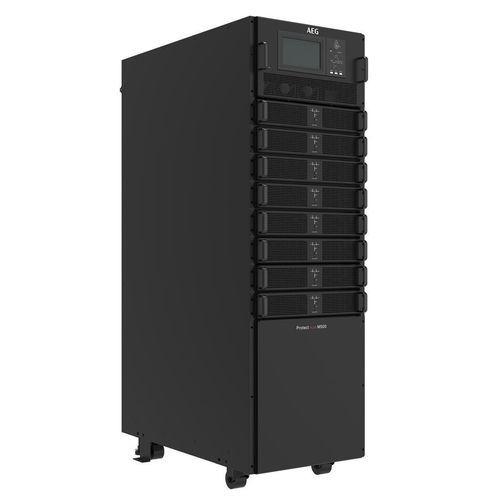

Protect PLUS M500 is a modular 3-phase UPS system combining a compact footprint, high AC/AC efficiency and a flexible scalable architecture. It supports hot-swappable 25 kVA power modules, enabling deployments from 25 kVA up to 600 kVA (up to 3 frames in parallel). The unit provides input PF > 0.99 and input THDi < 3% (even at low load) with AC/AC efficiency > 95% in double conversion and > 98% in ECO mode. A flat efficiency curve from 25% load ensures energy savings across typical load ranges.

Highlights

• High efficiency for reduced operating costs
• Scalability through modular growth to optimize CAPEX
• Low MTTR with hot-swappable power modules for fast serviceability
• Compact footprint and simplified cabling for easier installation

Features

• Double Conversion (VFI-SS-111)
• Transformer-less architecture to reduce space and weight
• Up to 600 kVA in parallel without additional tools
• 25 kVA hot-swappable power modules for predictive power management
• AC/AC efficiency in double conversion up to 95.6%
• ECO Mode efficiency up to 98.5%
• Idle Mode
• Output power factor = 1 (unity)
• 7" color touch screen + LED + keyboard
• Cold start function
• Optional 30 A charger module compatible in power module slot

Key electrical data
CAPACITY: 25-200 kVA
INPUT PHASES: 3 PH + N + G
INPUT VOLTAGE (L-L): 380 / 400 / 415 V
OUTPUT PHASES: 3 PH + N
OUTPUT VOLTAGE (L-L): 380 / 400 / 415 V

Accessories (selection)

• Battery: Lead acid batteries (12 V each) — quantity up to 40, configurable even number from 32 to 44; recharge power configurable up to 20% of system power
• Communication: 7" LCD + LED, color touch screen + keyboard; optional SNMP card

Technical specifications

• Model: Protect PLUS M500
• Power module rating: 25 kVA (hot-swappable)
• Maximum capacity (per frame): 200 kVA
• Minimum single power module size: 25 kVA
• Maximum number of power modules connected: 8
• Parallel operation: up to 3 frames (up to 600 kVA)
• Dimensions (W x D x H) main frame (mm): 482 x 916 x 1550
• Dimensions (W x D x H) power module (mm): 436 x 677 x 85
• Weight main frame (kg): 160
• Weight power module (kg): 18
• Color: RAL 7021
• Phase configuration: 3Ph: 380 / 400 / 415
• Display: 7" LCD + LED, color touch screen + keyboard
• Frequency: 50 / 60 Hz (variable range 40 to 70 Hz)
• Input power factor: > 0.99
• Input THDi: < 3% (with full linear load)
• AC/AC efficiency in double conversion: > 95% (at nominal load)
• AC/AC efficiency in ECO Mode: > 98% (at nominal load)
• Output power factor: = 1 (up to unity)
