Tension load cell ET-9
beam typefor craneshigh-precision

Tension load cell - ET-9 - Aerospace Southocean(Zhejiang)Science And Technolo - beam type / for cranes / high-precision
Tension load cell - ET-9 - Aerospace Southocean(Zhejiang)Science And Technolo - beam type / for cranes / high-precision
Add to favorites
Compare this product

Characteristics

Type
tension
Form
beam type
Applications
for cranes
Other characteristics
high-precision, small
Rated load

3 t, 5 t, 10 t
(3.31 us ton, 5.51 us ton, 11.02 us ton)

Description

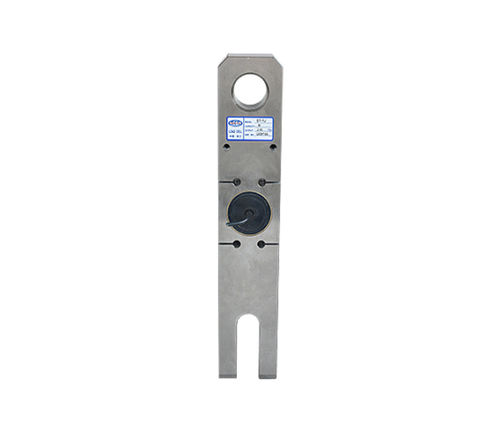

ET-9 tension load cell is specially designed for crane scales,it is made of high quality alloy steel.This tension load cell has optimized structure, high accuracy and small corner error. It is suitable for various high precision crane scales. Rated Output(mV/V) 2.00±0.005 Nonlinearity ±0.02%FS Hysteresis ±0.02%FS Repeatability ±0.01%FS Creep(30 minutes) ±0.02%FS/10℃ Zero Balance ±1.00%FS Temperature Effect on Zero ±0.02%FS/10℃ Temperature Effect on Output ±0.02%FS/10℃ Input Resistance(Ω) 385±10 Output Resistance(Ω) 350±3 Insulation Resistance ≥5000MΩ Excitation Voltage 10V(DC/AC) Compensated Temperature Range -10℃~+50℃ Operating Temperature Range -20℃~+60℃ Safe Overload 120%FS Cable Φ4×0.5m Cable Color Code Input:Red(+) Black(-) Output:Green(+) White(-)
