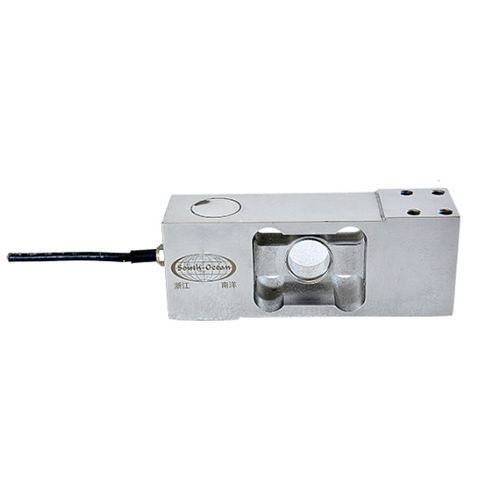

Beam type load cell PE-15

single-pointweighingstainless steel

Stainless steel makes the single point load cell with the feature of anti-corrosion.Tri-beam welded seal structure ensure its high protection glass,IP 68.Its strain aera is welded by thin stainless steel pipe.Corner adjustment before delivery ensures its consistent output in stated load plane.This single point load cell is suitable for high moistureproof electronic platform scale,etc. Rated Output(mV/V) 2.00±0.005 Nonlinearity ±0.03%FS Hysteresis ±0.03%FS Repeatability ±0.01%FS Creep(30 minutes) ±0.02%FS Zero Balance ±1.00%FS Temperature Effect on Zero ±0.02%FS/10℃ Temperature Effect on Output ±0.02%FS/10℃ Input Resistance(Ω) 385±10 Output Resistance(Ω) 350±3 Insulation Resistance ≥5000MΩ Excitation Voltage 10V(DC/AC) Compensated Temperature Range -10℃~+50℃ Operating Temperature Range -20℃~+60℃ Safe Overload 120%FS Cable Φ5.4×6m Cable Color Code Input:Red(+) Black(-) Output:Green(+) White(-)
