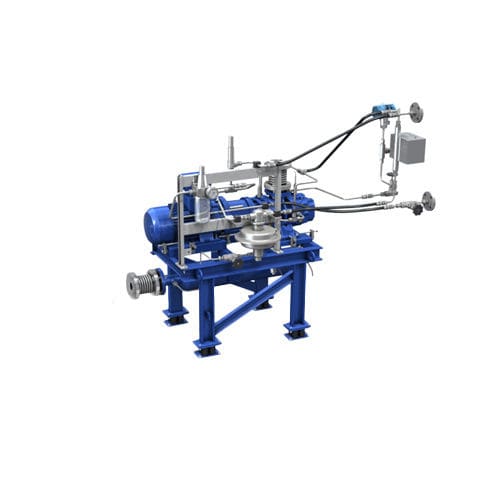

Hydrogen gas compressor unit GMD

gasairrotary lobe

Product description
The GMD series by AERZEN is a universal, gas-tight booster solution for the low-pressure range. Equipped with a hermetic magnetic coupling, it provides a low‑maintenance sealing concept by eliminating shaft sealing lock systems. Separation between oil and process side is ensured by a special piston-ring seal. The robust two-lobe design allows design pressures up to 7.0 bar(g). Sixteen sizes cover a wide range of operating points.

Key features

• Hermetic magnetic coupling for gas-tight sealing (low-maintenance)
• Oil and process chambers separated by piston-ring / PEEK or cast-iron seals
• Oil-free compression of process gases
• Robust two-lobe machine design, max. operating pressure 7.0 bar(g)
• 16 available sizes to match application requirements

Technical data (short)
Volume flow: 30 to 11,000 m³/h
Pressure rise (Δp): 150 to 1,000 mbar
Medium: process gases
Operation: oil-free
Max. operating pressure: 7.0 bar(g)

Applications
Process gas boosters from AERZEN are used across many industries and key applications:

• Industrial gases: air separation
• Oil & gas extraction and storage: gas recovery (VRU), decarbonisation / tertiary oil recovery
• Chemical industry: acetylene circular gas
• Petrochemistry & refineries: ethylene, propylene, olefins (feed gas compression); butadiene (extractive distillation)
• Industrial R&D: circular processes (inert and purge gases)
• Glass industry: oxygen injection (melting furnace), tin bath protective atmospheres (hydrogen, nitrogen)

Construction & materials
Housings are available in spheroidal graphite cast iron or stainless steel, with round flanges and O‑ring sealing.

Shaft sealing
Standard: hermetic magnetic coupling (low-maintenance). Optional: oil-lubricated, double-acting mechanical seal with thermosiphon cooling for high torques (≥ 600 Nm).

Flow & drive characteristics
Flow direction: vertical downward. Drive: direct coupling to motor (B35 arrangement for magnetic coupling or B3 for the alternative mechanical seal).

Summary / highlights

• Practically maintenance-free sealing concept via magnetic coupling
• Separation of oil and process side (piston-ring / optional barrier gas)
• Oil-free handling of process gases
• Max. pressure 7.0 bar(g) compliant with relevant standards
• Range of 16 sizes for flexible application matching

Technical specifications

• Type: rotary lobe blower
• Pressure rise (Δp): 150 to 1,000 mbar
• Volume flow: 30 to 11,000 m³/h
• Medium: process gases
• Operation: oil-free
• Max. operating pressure: 7.0 bar(g)
• Housing materials: spheroidal graphite cast iron or stainless steel
• Drive options: direct coupling to motor (B35 for magnetic coupling / B3 for mechanical seal)
• Shaft sealing: magnetic coupling or double-acting mechanical seal (oil-lubricated) with thermosiphon cooling
• Available sizes: 16
