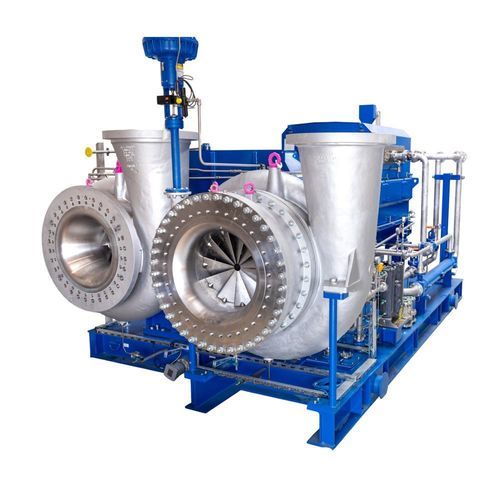

Integrally geared turbo-compressor CC

oil-freepower generationhigh-efficiency

Overview
Durable and reliable compressor systems designed for demanding ambient and process conditions. Customer-specific solutions are engineered in compliance with API 617, API 672, ASME, DIN and other standards. Complete compressor packages are supplied including auxiliary equipment, control systems and factory testing.

Applications

• Power industry
• Steel industry
• Chemical and refinery
• Air separation
• Oil & gas
• Green technologies (CO2 capture / carbon capture)

Key figures
Volume flow: 0 to 350,000 m³/h
Differential pressure (Δp): 0 to 300,000 bar
Medium: Process gases, air
Conveying / Compression: Oil-free

Range for integrally geared compressors

• Pressure up to 300 bar (a)
• Flow rate up to 350,000 Nm³/h
• Up to 6-stage geared compressors
• Handling of all gas mixtures

Properties

• Complete integrally geared compressor solutions
• In-house dynamic balancing and overspeed testing
• Factory mechanical and performance test runs
• Advanced shaft sealing options matched to gas composition
• Integrated control systems and lifecycle monitoring
• Energy-efficient impeller designs

Technical specifications

• Technology: Turbo compressors
• Differential pressure (Δp): 0 to 300,000 bar
• Volume flow: 0 to 350,000 m³/h
• Medium: Process gases, air
• Conveying / Compression: Oil-free
• Options: Open-shaft units or complete compressor packages with auxiliary equipment
• Standards: Solutions per API 617, API 672, ASME, DIN and others
