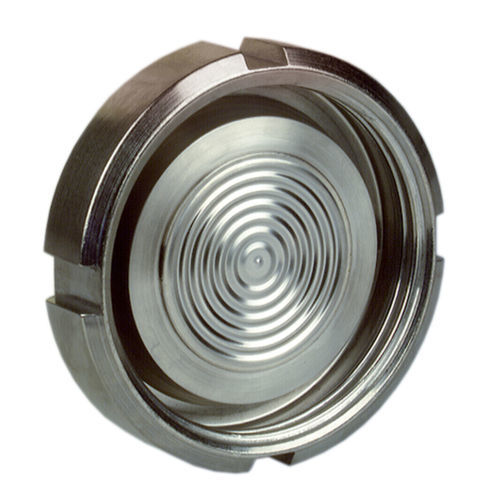

Diaphragm seal with threaded connection MD 50

for pressure gaugesprocesschemical

All materials FDA-listed SIP/CIP enabled No dead space Various standards available Application Diaphragm seals MD 50/51 with food law compliant screwed pipe connection for hygienic process separation of pressure measuring and control units in pipes or tanks. For mounting to Bourdon tube pressure gauges, pressure transducers and pressure switches. For installation in hygienic processes without dead spaces. Food and beverages industry Dairies Beverage machines Breweries Description All materials used are FDA-listed. The chemical seal and the measuring instrument are welded together, resulting in an inseparable single, shock- and vibration-resistant unit that does not require additional external protection. The chemical seals are available with various nominal diameters; due to their compact design, they are suitable for a wide range of applications. Technical data Surface roughness RA ≤ 0.8 µm Diaphragm Stainless steel 316 L Instrument connection Welded connection Can be mounted to Pressure transducers (DMU) Pressure switches (DS) Options Other designs (Südmo, Guth) Other materials Electropolished Cooling element Capillary Other pressure transmission liquids Accessories such as union nuts and seals Other process connections:
