Dial pressure gauge Type D6
flangeG 1/4polyamide

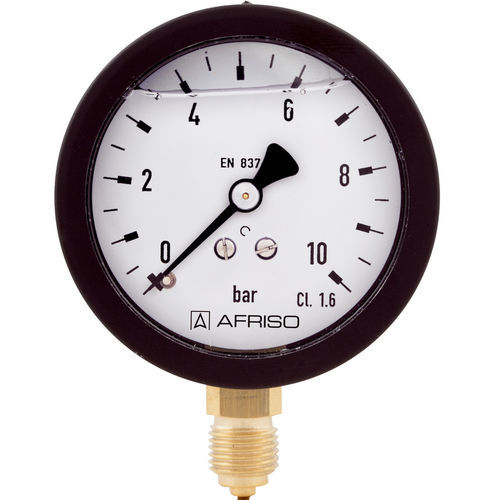

Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide - image - 2
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide - image - 3
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide - image - 4
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide - image - 5
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide - image - 6
Dial pressure gauge - Type D6 - AFRISO-EURO-INDEX - flange / G 1/4 / polyamide - image - 7
Add to favorites
Compare this product

Characteristics

Display
dial
Mounting
flange
Process connection
G 1/4
Material
stainless steel, brass, aluminum, plastic, polyamide
Technology
Bourdon tube
Protection level
heavy duty
Applications
process, for gas, for liquids
Other characteristics
glycerin-filled
Pressure

Max.: 400 bar
(5,801.51 psi)

Min.: -1 bar
(-14.5 psi)

Precision

1.6 %

Dial diameter

40 mm, 50 mm, 63 mm
(1.6 in, 2 in, 2.5 in)

Process temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Can be used in case of heavy vibrations and high, dynamic pressure loads Longer service life due to less wear and corrosion protection of the measuring system No steaming up of the inside of the window in case of outdoor applications Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads. Ranges (EN 837-1/5) See ordering table Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Standard design Filling liquid Glycerine (99.5 %) Options Back flange (NG 63) Clamp fixing (NG 50/63) 3-hole fixing, panel mounting bezel (NG 63) Damping screw Special scales Other process connections
