Dial pressure gauge Type D7
flangeG 1/4G 1/2

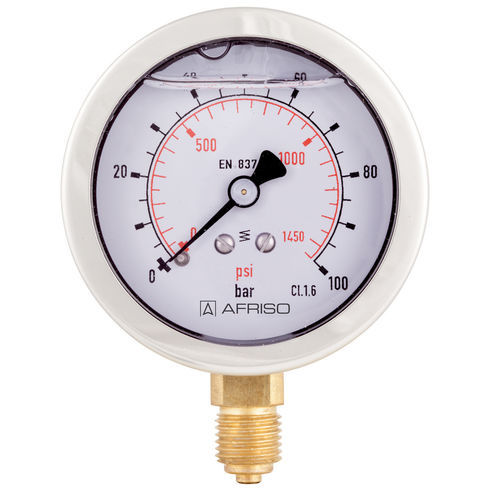

Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2
Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2
Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2 - image - 2
Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2 - image - 3
Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2 - image - 4
Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2 - image - 5
Dial pressure gauge - Type D7 - AFRISO-EURO-INDEX - flange / G 1/4 / G 1/2 - image - 6
Add to favorites
Compare this product

Characteristics

Display
dial
Mounting
flange
Process connection
G 1/2, G 1/4
Material
stainless steel, aluminum, plastic
Protection level
IP65, IP54
Applications
process, for gas, for liquids
Other characteristics
adjustable
Pressure

Min.: -1 bar
(-14.5 psi)

Max.: 1,000 bar
(14,503.77 psi)

Precision

1 %

Dial diameter

50 mm, 63 mm, 80 mm, 100 mm
(2 in, 2.5 in, 3.1 in, 3.9 in)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Description

Robust stainless steel housing Can be used in case of heavy vibrations and high, dynamic pressure loads Longer service life due to less wear and corrosion protection of the measuring system No steaming up of the inside of the window in case of outdoor applications Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads. Ranges (EN 837-1/5) See ordering table Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Options Filling liquid silicone oil Back flange (NG 63/80/100) Clamp fixing 3-hole fixing, panel mounting bezel Crimped bezel polished Special scales Clip reference pointer, red, adjustable (NG 63) Damping screw Other process connections
