Features & Benefits
*Ultra high gripping force to weight ratio.
*True parallel jaw motion for easy tooling.
*Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance.
*Piston seals are quad-ring type for long service life.
*Additional side mounting holes and side air ports for optional mounting and porting.
*Proximity switches are available to monitor open and closed position of the jaws.

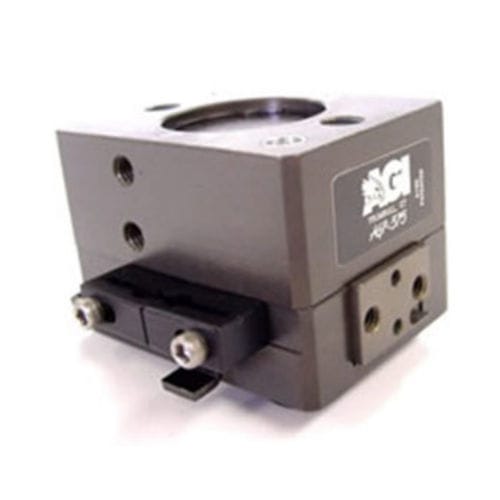

*Series AGP-375 is fully field repairable for cost savings and minimum down time.
Product Specifications
Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]
Pressure Range:
30-120 PSI [2-8 bar]
Temperature Range:
-20°-180°F [-28°-80°C]
Side Play:
± 0.001 [0.03 mm]
Repeatability from center:
± .002 [0.06 mm]
Loading Capacity: Static – Dynamic
Max Tensile T
200 lbs 25 lbs
[889 N] [111 N]
Max Compressive C
400 lbs 25 lbs
[1780 N] [111 N]
Max Moment Mx
150 in/lb 25 in/lb
[17 Nm] [2.8 Nm]
Max Moment My
150 in/lb 25 in/lb
[17 Nm] [2.8 Nm]
Max Moment Mz
150 in/lb 25 in/lb
[17 Nm] [2.8 Nm]
Material: High Strength, Hard Coated aluminum bronze alloys, Steel
Weight: 7 oz. [198 g]
Piston Diameter: 1.00 in [25.4 mm]
