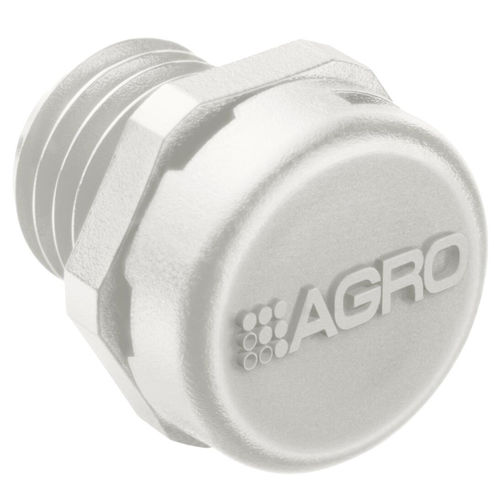

Plastic pressure balance element 2455.12
Add to favorites
Compare this product
Characteristics
- Material
- plastic
Description
Synthetic pressure balance element with membrane
with membrane
Light grey RAL 7035
Material Polyamide PA 6
Membrane PES polyethersulfone
O-ring NBR
Operation temperature -40°C / +100°C
Protection class IP 66 / IP 68 / IP 69
Further protection IP68 = 0.2bar / 30min
Air flow rate > 90ml / min / cm² at 10mbar
Properties halogen-free
Entry thread M12x1.5
Wrench size 17 mm
Dimension H 9 mm
Dimension L 10 mm
Dispatch 25
