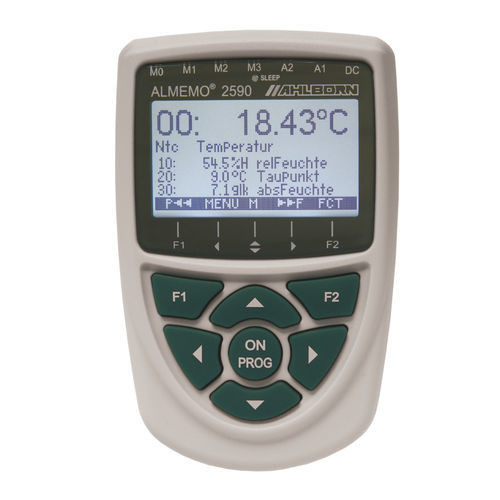

• Professional measuring instrument with data logger function
• Comprehensive range of functions for all application areas
• Graphics display for showing measured values and programming
• 2 or 4 measuring inputs
• New variant, further developed
• Good measuring accuracy, measuring rate up to 10 measuring operations per second (mops)
• Over 65 standard measuring ranges
• Support for ALMEMO® plugs with multi-point adjustment, special linearization, and special measuring ranges
• Graphics display with white illumination, easy and convenient operation by means of 4 soft-keys and cursor block
• Clear and easy-to-understand menu system
• 3 measuring menus (1 menu can be freely configured by user from a range of 50 functions), measured values displayed numerically, 1 to 12 measured values can be displayed in two sizes or graphically in bar chart form.
• Intelligent sensor readings with sensor-specific functions Cold junction compensation, temperature compensation, and atmospheric pressure compensation
• Measuring functions : Measured value, zero-setting, setpoint adjustment
• Function menus
• Maximum value, minimum value, memory sufficient for 99 measured values, average value over time / individual values / measuring points, smoothing, volume flow with center point measuring, two-point adjustment, scaling, data logger with configuration menus
• Option VN
• Volume flow determined from matrix measuring as per DIN EN 12599
• Programming menus for clear and easy-to-understand sensor programming, range, units, designation, right through to special functions, configuration of device parameters and of output modules
