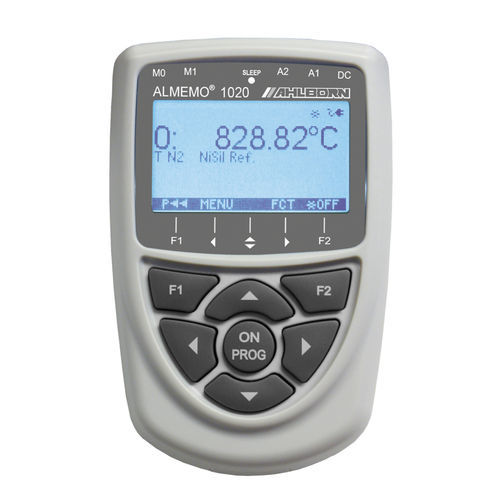

Temperature measuring instrument ALMEMO® 1020-2

NTCthermocouplecalibration

• Reference measuring instrument for temperature • High-precision measuring by means of thermocouples Types N, S, R, B • Resolution 0.01 K, up to 1800 °C Technical data and functions • Temperature measurement with very high levels of resolution, precision, and linearity, using thermocouples Types N, S, R, B • Suitable as reference device in calibration laboratories and quality assurance procedures • Very high accuracy thanks to multi-point adjustment of the thermocouple temperature sensor • Each temperature sensor has its own cold junction stored in the ALMEMO® plug or externally. The cold junction temperature in the ALMEMO® plug is measured to a very high resolution of 0.001 K by means of an NTC sensor. • Two electrically isolated measuring inputs for thermocouples, types N, S, R, B • Resolution 0.01 K • Units °C, °F, K • High-resolution A/D converter, delta-sigma, 24-bit, 1.25 mops (measuring operations per second) • Two output sockets for digital interface, ALMEMO® memory connector • Compact, modern, ergonomic design • Graphics display, illuminated with white light • Easy and convenient to operate by means of 4 soft-keys and cursor block • Measured value display : 2 measured values, differential, measuring point list, cold junction temperature • Measuring functions : Zero-setting, smoothing, maximum / minimum values, individual value memory for 100 values •Data logger with ALMEMO® memory connector (accessory) •Sensor programming : Smoothing, designation, units •Device configuration : Illumination, contrast, device address, baud rate •Choice of language : German, English, French
