• Reference measuring instrument for temperature and humidity
• Multi-channel measuring instrument with nine measuring inputs for Pt100 sensors and Pt100 psychrometers
• High-precision measuring with resolution of 0.001 K
• For use either as PC interface or with external memory connector as data logger
Technical data and functions
Multi-channel instrument for high-precision measuring

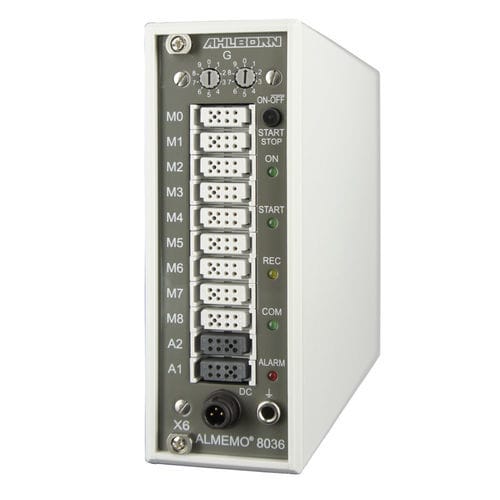

Reference measuring instrument ALMEMO® 8036-9 ensures very high levels of resolution, precision, and linearity when measuring temperature, using up to nine Pt100 sensors - or alternatively up to four Pt100 psychrometers.
This reference measuring instrument is suitable for use as calibration standard in calibration laboratories, for quality assurance procedures, or as a multi-channel instrument for high-precision measuring operations, e.g. in test and measuring rooms or climate chambers.
With the Pt100 the measuring ranges have been expanded considerably, up to +670 °C at the highest resolution of 0.001 K and up to +850 °C at a resolution of 0.01 K. The measured value units can be programmed to either °C / K / °F.
Reference measuring instrument ALMEMO® 8036‑9 operates with special ALMEMO® plugs incorporating expanded programming possibilities. These plugs, it should be noted, cannot be interchanged with the ordinary plugs used with ALMEMO® V6 / V7 measuring instruments.
Very high precision thanks to multi-point adjustment and input of coefficients for the Pt100 characteristic
This very high level of precision is achieved by calibrating the measuring chain comprising Pt100 sensor and measuring instrument. For each individual sensor there are two error correction methods available.
