Semi-automatic filling machine LSC
IBCliquidsfor petroleum products

Semi-automatic filling machine - LSC - AiCROV - IBC / liquids / for petroleum products
Semi-automatic filling machine - LSC - AiCROV - IBC / liquids / for petroleum products
Semi-automatic filling machine - LSC - AiCROV - IBC / liquids / for petroleum products - image - 2
Add to favorites
Compare this product

Characteristics

Operational mode
semi-automatic
Container type
IBC
Product applications
food, for chemical products, for semi-liquids, liquids, for explosive environment, for perfumes, for corrosive products, for petroleum products, for viscous products, for lubricants, for adhesive materials, fertilizer, for aggressive products, for hazardous materials
Domain
for the food industry, for the chemical industry
Type
weight, servo-driven
Number of heads
with 1 head
Other characteristics
PLC-controlled, ATEX, servo-driven, explosion-proof, net weight, with platform scale, with CIP, single station
Throughput

Max.: 20 p/h

Min.: 0 p/h

Volume

Max.: 1,500,000 ml
(50,721 US fl oz)

Min.: 800,000 ml
(27,051.2 US fl oz)

Machine weight

500 kg
(1,102.31 lb)

Description

Overview

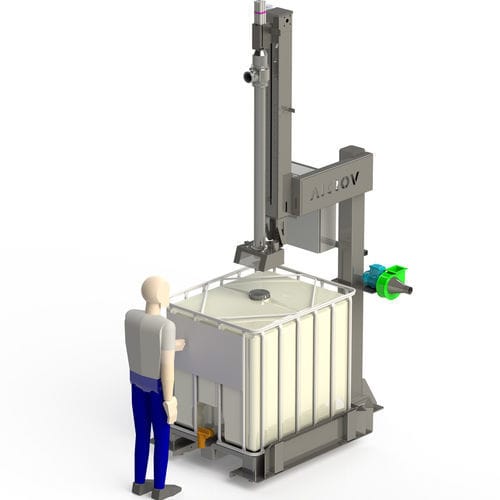

The LSC is a semi-automatic, gravimetric filling machine designed to fill individual IBCs (totes) by weight. A U-shaped weighing platform allows pallet-truck access so the container's bunghole aligns with the fixed nozzle without repositioning. Suitable for standard IBC formats (800–1,500 L). Part of the Plug & Fill series.

How it works
  • Operator selects filling recipe and target net weight on the panel.
  • An IBC on its pallet is placed on the U-shaped weighing platform.
  • On start the system tares automatically and fills to the set net weight under gravimetric control.
  • Operator removes the filled IBC and places the next container for filling.

Filling modes and assemblies
Two interchangeable stainless-steel assemblies are available at order: under-bunghole assembly and immersion assembly (AISI 304 body, AISI 316L nozzle standard).
  • Under-bunghole filling — nozzle descends into the bunghole and fills from that position; suited to non-foaming, non-flammable, dense or viscous liquids. This assembly fills only under the bunghole.
  • Immersion filling — nozzle reaches the container bottom; used for foaming or flammable products. Three recipe-controlled strategies: rising with the product, remaining at the bottom for the full fill (extreme foaming), or executing under-bunghole mode via the immersion assembly.

Machine architecture
Self-supporting frame carries the column and filling head; the nozzle is fixed and the container is brought to it. Weighing terminal is integrated into the control system. U-shaped platform permits fork entry so the bunghole aligns with the nozzle without manual adjustment.

Inert gas filling (optional)
Optional accessory: nozzle includes an inert-gas passage with solenoid valve in the main cabinet. Gas timing (before opening, during filling, after reaching weight) is configurable per recipe. Supports short nitrogen pulses or slight overpressure inerting prior to capping. Nozzle is interchangeable without modifying the machine structure.

AiCROVFill® filling control
AiCROVFill® is the integrated control software for accurate fills with challenging products. Functions include misalignment detection (nozzle retracts on resistance), final weight control and top-up, compensation for submerged lance movement, automatic learning for residual product flow after valve close, and recipe-based parameter storage per product and container.

Built from standard industrial parts
The control, pneumatics, sensors and weighing elements use globally available industrial components; no proprietary electronics in the control chain, facilitating local spare-parts sourcing and maintenance.

Safety and compliance
Designed and manufactured in Europe with CE marking. Safety design follows EN ISO 12100, EN ISO 13849-1, EN 60204-1 and EN ISO 13850. Safety features: emergency stop cutting electrical power and pneumatic pressure, passive nozzle lock, and safe behaviour on failure. Explosion-proof versions and certification support (ATEX, IECEx, NEC equivalents) for Zone 1/2 or Class I Division 1/2 are available.

Applications and limitations
Intended for single IBC filling in standard formats moved by pallet truck. Not suitable for drums, small containers or combined IBC-and-drum filling at a single unhandled station; other models address those use cases.

Videos and demonstrations
Demonstration videos and installation examples are available showing single and multiple LSC units in industrial environments with food, agrochemical and other products.

Technical specifications
  • Type: Semi-automatic, weigh (gravimetric) filling
  • Series: Plug & Fill
  • Containers: IBCs, 800–1,500 L (210–400 gal)
  • Throughput: 20 IBC/h (1,200 L)
  • Filling accuracy: ±0.1% of nominal (case-dependent)
  • Scale resolution: ±250 g
  • Inert gas filling: Optional accessory
  • Filling assembly: Under-bunghole or immersion (immersion can also operate under-bunghole)
  • Height adjustment: 550 mm, servo
  • Power: 240 V, 50–60 Hz,
  • Air pressure: 6 bar (other on request)
  • Working temperature: −10 °C to +45 °C
  • Product temperature: 0 °C to +130 °C
  • Product connection: 2½" male camlock
  • Machine weight: 500 kg
Explosion-proof version: Available
Frequently asked questions
Does the LSC need the IBC to be positioned precisely?
No. IBCs keep essentially the same width and height across formats, so once the pallet is on the platform the bunghole is already under the nozzle.
How accurate is it?
Accuracy is set by the scale, because the filling control can only correct what the scale measures. The standard C3 pallet scale divides in 0.5 kg; C6 or C10 load cells, available as options, bring it to 0.2 kg. Each application is confirmed technically, as the net weight to be filled can change the values.
How does the IBC get onto the platform?
With an ordinary pallet truck. The weighing platform is U-shaped so the truck’s forks reach the pallet without obstruction.
How many IBCs per hour?
20 IBCs of 1,200 litres per hour, nominal.
Can it fill under an inert atmosphere?
Yes. Like every AiCROV machine, the LSC can be supplied with inert gas filling as an accessory: the gas flows through the nozzle, driven by a dedicated solenoid valve in the control cabinet, and when and for how long it flows is set in the recipe for each product.
Can it fill flammable products?
  • Yes, in an explosion proof version engineered for the certification scheme of the country of installation. Flammable products are normally filled with the immersion assembly, which keeps the nozzle below the product level, and electrostatic grounding control is available as an option.
