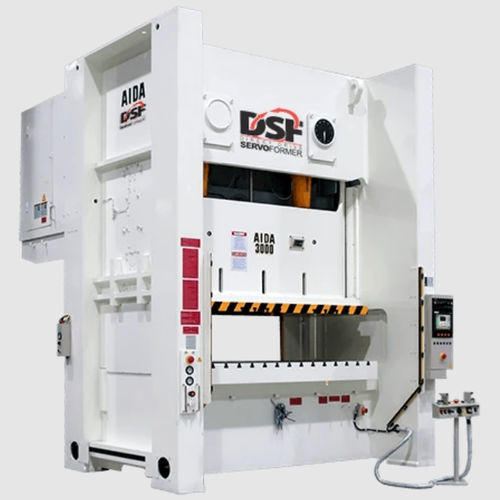

Hydraulic press DSF-N2 series

electricmechanicalstamping

Same Mechanical Drive Train of the tried and true NS2 Mechanical Press AIDA HOLP ECO Power Management System AIDA DSF Direct Drive Servo Motor The AIDA DSF-N2 Direct Drive Unitized Frame Servo Press marries the successful mechanical design of the NS2 Series Mechanical Unitized Frame press with AIDA's DSF Direct Drive Servo. This combines the rigidity of a unitized frame with the flexibility of the freely programmable servo motion. Simple, Yet Effective Slide Guide System for Stamping Presses Extra-long gibs with extensions on the slide minimize "tipping" of the slide within the guides and provide superior off-center guiding vs. industry standard The Most Powerful Servo Motors Available for Stamping Presses Direct drive servo motors, driving the industry's leading servo presses. Low speed, high torque, specifically manufactured for stamping press applications using standard press drive train design. Improved Design When Compared to Wrist Pin Connections Eliminate one of the largest maintenance costs of a stamping press: the wrist pin slide connections. Designed to withstand the rigors of heavy stamping. Utilizes Hardened and Ground Pinion and Main Gears Provides industry minimal backlash resulting in improved press accuracy. Integrated hardened pinion minimizes required gear diameters and related drivetrain inertia. Hydraulic Overload Protection System AIDA's press technology - the industry's fastest protection system. When overload occurs, oil evacuates 360 degrees around the ball seat with minimum oil flow resistance as compared to conventional systems Providing Clean Oil in Metered Amounts to all Bearing Points Oil from all lube points is captured,
