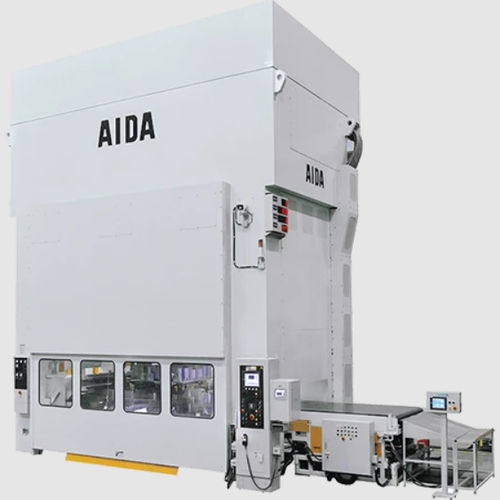

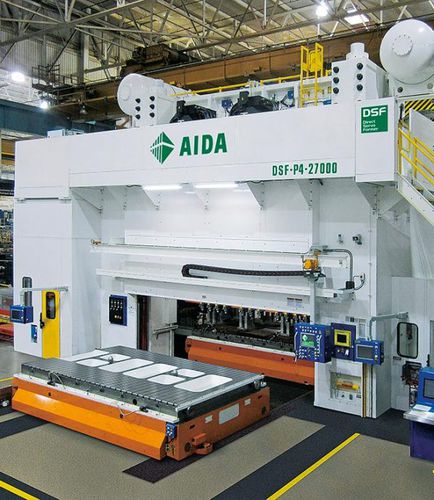

Hydraulic press DSF-P4

formingframeCNC

The DSF-P4 Series is composed by high-precision, high-rigidity, straight side 4-point servo presses for progressive die applications. The highly rigid tie-rod frame coupled with bearings designed with minimal overall bearing clearances keep breakthrough to a minimum, which reduces noise, enables high long-term accuracy and extends die life. The left/right shaft configuration and the wide spacing between the connection points enables DSF-P4 presses to capably withstand off-center loads, and it utilizes a proprietary ‘torque unit’ design that doesn’t transmit reverse loads to the drive gears. The high precision of each component is achieved by machining the components in-house, and the total clearance is JIS Special Class or lower. The highly rigid frame and the symmetric design delivers high precision, high performance, and high durability. Moreover, the built-in dynamic counterbalances reduce vibration and enable stable high-speed production. In order to achieve high-precision assembled components, the minimal deformation that occurs once components are mounted in the press is replicated during the machining process. Exclusive 4-point press design, manufactured with forged eccentric shafts on a very low deflection tie rod frame with dynamic balancing of slide and upper die Built-in dynamic counterbalances reduce vibration and enable stable high-speed production Minimizes breakthrough that occurs during blanking, increases die life, and also improves product precision The highly rigid frame can withstand the progressive stamping of thick sheet metal The symmetrical front-to-back and left-to-right frame maintains high dynamic accuracy
