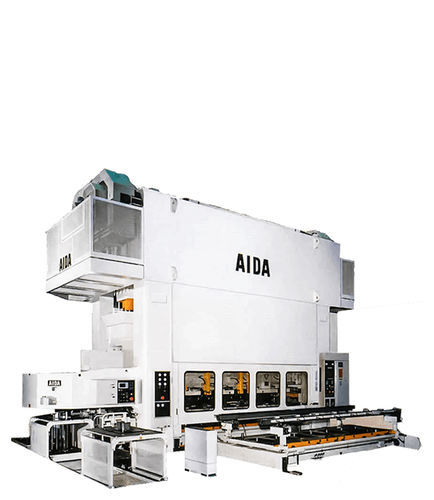

Stamping unit TME-S2 Series

Overview
The TME-S2 presses feature wide suspension point spacing for improved off-center load capability, minimal overall clearance to reduce breakthrough risk, 8-point square slide guides to limit lateral and longitudinal movement, and a tie-rod tightened frame for enhanced rigidity and precision. The frame and manufacturing processes are optimized to handle forming of high-strength materials.

Manufacturing and capabilities
AIDA produces precision components in-house to achieve minimal clearances at critical interfaces. The 8-surface slide guide design and grip-type point design provide high-precision forming and long tool life. The TME-S2 Series is engineered for forming automotive structural panels and transmission parts with consistent repeatability at production scale.

Key features

• Stamping system designed for wide production diversity and stable operation
• Overload protector with advanced metal-seal design for fast response and tooling protection
• Minimal overall clearance to reduce breakthrough occurrence
• Adjustable slide settings to maintain parallelism and resist off-center loading
• Wide suspension/connection spacing to increase off-center load bearing capacity

Main specifications (table)
Model | TME-S2-4000 | TME-S2-6300 | TME-S2-8000 | TME-S2-10000
Capacity (kN) | 4000 | 6300 | 8000 | 10000
Slide Stroke (single reduction) (mm) | 350 | 400 | 400 | –
Slide Stroke (double reduction) (mm) | 300-400 | 450 | 450-500 | 400-500-600
Slide and bolster length (mm) | 3050-3650 | 3500-(4250) | 4000 | 4500-5000
Slide and bolster width (mm) | 1500 | 1500-(1700) | 1800 | 1800
Side window opening (mm) | 1700 | 2200 | 2200 | 2360
Shut height (mm) | 600-650-850 | 800-900-1000 | 900-950-1000 | 900-1000
Slide adjustment (mm) | 250 | 300 | 300 | 300
Press speed in full revolution (single reduction) (mm-1) | 20÷60 | 20÷50 | 20÷50 | –
Press speed in full revolution (double reduction) (mm-1) | 10÷35 | 10÷30 | 12÷30 | 15÷30

Technical specifications

• Series: TME-S2 Series
• Press capacities: 4000 kN to 10000 kN
• Transfer type: 2-point eccentric transfer presses with frontal eccentric gears
• Slide guide: 8-point square / 8-surface slide guide design for lateral and longitudinal stability
• Frame: tie-rod tightened frame to increase rigidity and precision
• Intended applications: forming of high-strength automotive structural panels and transmission parts
• Overload protector: advanced metal-seal design for rapid protection of tooling and press
• Model-dependent options: slide stroke, slide/bolster dimensions, side window opening, shut height, slide adjustment, and speed ranges (see table)
