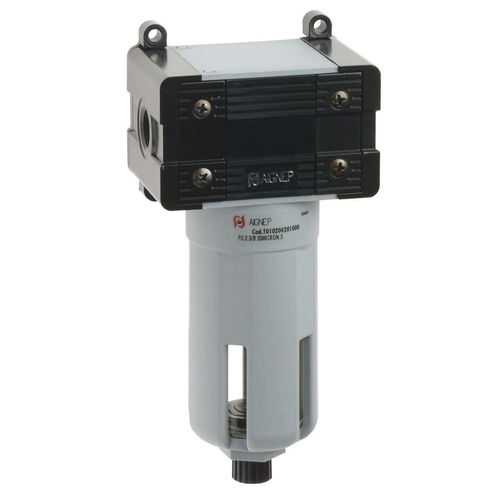

cartridge filter housing / for compressed air
T010 series

{{requestButtons}}

Characteristics

  • Filter type:

    cartridge

  • Fluid:

    for compressed air

  • Operating pressure:

    Min.: 0 bar (0 psi)

    Max.: 15 bar (217.557 psi)

Description

ThreadedFRL1 1/8" - 1/4" - 3/8"
FRL2 1/4" - 3/8" - 1/2"
FRL3 1/2" - 3/4" - 1"
6 bar Flow rate with Δp 1 barFRL1 1900 NI/min
FRL2 3750 NI/min
FRL3 6250 NI/min
Wall clamping screwsFRL1 M4x14
FRL2 M5x18
FRL3 M6x20
Bowl CapacityFRL1 22 cm3
FRL2 46 cm3
FRL3 89.5 cm3
Filtration Grade 5 µm
20 µm Standard
50 µm
FluidCompressed air.
Maximum Pressure 15 bar
Temperature -10°C +50°C at 10 bar
Assembling positionVertical
