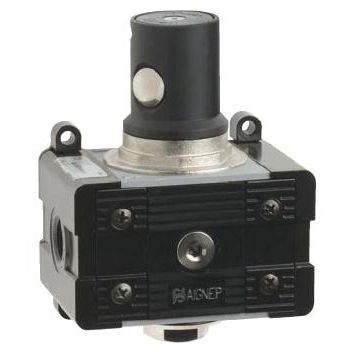

Shut-off valve T050 series
ballmanualelectropneumatic

shut-off valve
shut-off valve
shut-off valve
shut-off valve
shut-off valve
shut-off valve
shut-off valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual, electropneumatic, pneumatically-operated
Function
shut-off
Media
for compressed air
Temperature

Min.: -10 °C (14 °F)

Max.: 50 °C (122 °F)

Pressure

Min.: 0 bar (0 psi)

Max.: 15 bar (217.6 psi)

DN

Min.: 0.125 in

Max.: 1 in

Flow rate

1,850 l/min, 3,000 l/min, 5,200 l/min (489 us gal/min)

Description

ThreadedFRL1 1/8" - 1/4" - 3/8" FRL2 1/4" - 3/8" - 1/2" FRL3 1/2" - 3/4" - 1" 6 bar Flow rate with ?p 1 barFRL1 1850 NI/min FRL2 3000 NI/min FRL3 5200 NI/min Wall clamping screwsFRL1 M4x14 FRL2 M5x18 FRL3 M6x20 FluidCompressed air. Maximum Pressure 15 bar Temperature -10°C +50°C at 10 bar Assembling positionVertical

Catalogs

No catalogs are available for this product.

See all of AIGNEP‘s catalogs
