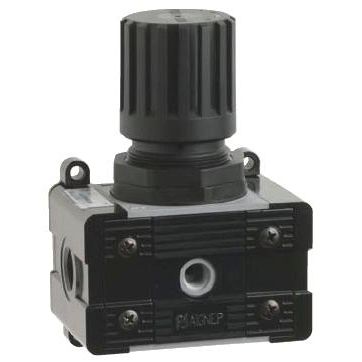

Compressed air pressure regulator T020 series
membranesingle-stagetechnopolymer

compressed air pressure regulator
compressed air pressure regulator
compressed air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air
Technology
membrane
Number of stages
single-stage
Material
technopolymer
Applications
industrial
Other characteristics
vertical
Pressure

Min.: 0 bar (0 psi)

Max.: 12 bar (174.05 psi)

Orifice diameter

Min.: 0.13 in

Max.: 1 in

Flow

2,050 l/min, 3,200 l/min, 6,200 l/min (541.55 us gal/min)

Description

ThreadedFRL1 1/8" - 1/4" - 3/8" FRL2 1/4" - 3/8" - 1/2" FRL3 1/2" - 3/4" - 1" 6 bar Flow rate with ?p 1 barFRL1 2050 Nl/min FRL2 3200 Nl/min FRL3 6200 Nl/min Wall clamping screwsFRL1 M4x14 FRL2 M5x18 FRL3 M6x20 MANOMETER FASTENING G 1/8" REGULATION RANGE 0 ÷ 2 bar 0 ÷ 4 bar 0 ÷ 8 bar STANDARD 0 ÷ 12 bar FluidCompressed air. Maximum Pressure 15 bar Temperature -10°C +50°C at 10 bar Assembling positionVertical
