Vacuum leak tester TFP11

pressurepneumaticelectro-pneumatic

The TFP11 is a pressure measurement and leak detection device designed to meet the strictest industrial quality-control requirements; it offers accuracy, optimized integration and ease of use.

Integration and areas of use

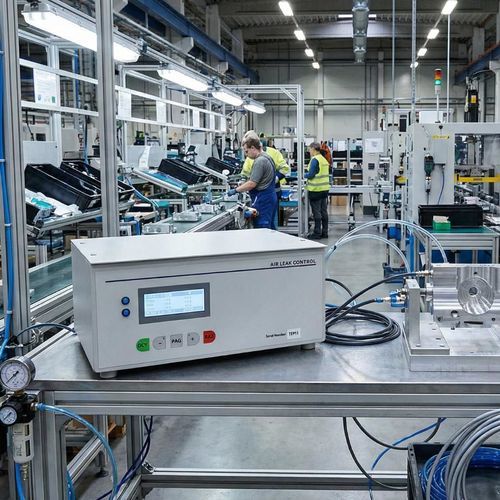

• Direct integration on automated production lines.
• On dedicated test benches.
• In metrology and R&D laboratories.

Main features (summary)

• Compact format and clean design for flexible integration.
• Clear and intuitive user interface for quick commissioning.
• Precise navigation menu and automatic configuration function to adapt to new part references.

Specifications / Technical data

• Display: 4-line LCD, 20 characters per line.
• Cycle indication: Blue indicator (cycle in progress).
• Result indication: Two-colour LEDs (Red: Reject, Green: Pass).
• Memory: 4 test programs can be stored.
• Pressure and leak scales:
  • Vacuum — Leak scale (max.): 1 000 kPa — Leak resolution: 0.004 kPa — Leak uncertainty: +/-2.5% + 1 digit.
  • 0–500 mbar — Leak scale (max.): 1 000 Pa — Leak resolution: 1 Pa — Uncertainty: same.
  • 0–5 bar — Leak scale (max.): 2 000 kPa — Leak resolution: 0.010 kPa — Uncertainty: same.
  • 0–10 bar — Leak scale (max.): 5 000 Pa — Leak resolution: 0.010 kPa — Uncertainty: same.
• Operating temperature: +5 to +60 °C.
• Storage temperature: -15 to +75 °C.
• Humidity: Maximum 20% (no condensation).
• Power supply required: +24 VDC (1.5 A minimum).
• Supply: Mains power adapter included.
• Dimensions (H x W x D): 120 x 300 x 200 mm.
• Weight: Approximately 7 kg.
• Connectivity and interfaces: Built-in relay board for PLC or HMI control; RS232 port for communication and traceability; configurable 24 V output for driving external valves or pneumatic devices.

Maintenance recommended and optional accessories

• Annual inspection and servicing of pneumatic components; annual calibration required for certified accuracy.
• Optional accessories: remote control (2, 4 or multifunction); quick-connect pneumatic fittings (internal or external); certified reference leak for system verification.
