Positive displacement flow meter AD11

volumefor airfor compressed air

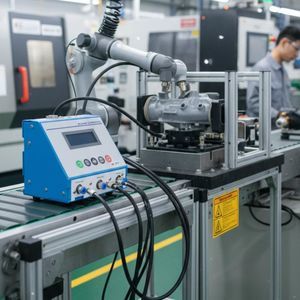

The AD11 from Air Leak Control is designed for in-line integration in high-speed production environments and provides rapid, accurate and repeatable quality control.

Main features

• Very high-resolution differential pressure sensors for stable measurement and reduced thermal and pneumatic disturbance effects.
• Extremely short cycle times to prevent quality control from becoming a production bottleneck.
• Advanced test algorithms offering high repeatability and flexible test configuration.
• Compact format for easy mounting on test benches and production integration.
• Connectivity and control included: integrated relay board for PLC interfacing, RS232 link for communication and traceability, 24 V output and configurable pneumatic output for valve and accessory control.
• Modular design for durability and simplified maintenance.

Maintenance and Accessories

• Recommended maintenance: annual check and servicing of pneumatic components.
• Annual calibration required for certified accuracy.
• Optional accessories: remote control (2‑button, 4‑button or multifunction), internal/external fitting adapters, reference leak, remote display, trigger.

Industry sectors (example applications)

• Plastics & Polymers: plastic bottles, containers, piping and bottle caps.
• Appliances & HVAC: thermal appliances (boilers, irons, coffee machines, gas stoves), washing machines.
• Automotive & Transportation: fuel filters, water pumps, wheel valves, exhaust components, injectors and fluid fittings.
• Metals (Brass): pneumatic and hydraulic components (safety valves, shut-off valves).
• Medical & Pharmaceutical: critical devices (eye dropper bottles, medical filters, syringes, plastic taps, micropipettes).
• Packaging & Filling: sealed or pressurized containers (ink cartridges, aerosols, bottles, plastic pouches).

Technical characteristics / specifications

• Display: 4-line LCD, 20 characters per line.
• Cycle indicator: blue LED (cycle in progress).
• Result indicator: bi-colour LEDs (Red: Reject, Green: Pass).
• Memory: Up to 64 test programs storable.
• Pressure ranges, resolutions and uncertainties:
  • Vacuum: resolution 0.001 mbar, uncertainty ±1% + 1 digit.
  • 0–500 mbar: resolution 1 mbar, same uncertainty.
  • 0–2 bar: resolution 0.01 bar, same uncertainty.
  • 0–5 bar: resolution 0.01 bar, same uncertainty.
• Flow ranges, resolutions and uncertainties:
  • 10 l/h: resolution 0.01 l/h, uncertainty ±2.5% + 1 digit.
  • 500 l/h: resolution 0.1 l/h, same uncertainty.
  • 2000 l/h: resolution 1 l/h, same uncertainty.
  • 5000 l/h: resolution 1 l/h, same uncertainty.
• Operating temperature: +5 to +60 °C.
• Storage temperature: -15 to +75 °C.
• Humidity: maximum 20% (non-condensing).
• Power supply: +24 VDC (minimum 1.5 A).
• Supply contents: mains power adapter included.
• Dimensions (H x W x D): 120 x 300 x 200 mm.
• Weight: approximately 7 kg.
