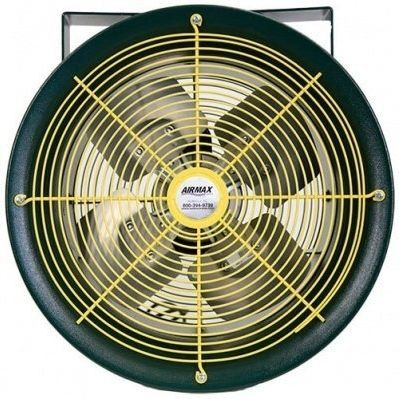

Vertical fan AM-16GPhorizontalaxialcooling
Add to favorites
Compare this product
Characteristics
- Type
- vertical, horizontal
- Configuration
- axial
- Function
- cooling
- Material
- aluminum, steel
- Applications
- for outdoor use, misting
- Air flow
Max.: 12,750 ft³/min
(361.04 m³/min)Min.: 3,700 ft³/min
(104.772 m³/min)- Diameter
16 in, 22 in, 30 in
- Rotational speed
1,150 rpm, 1,725 rpm
(7,226 rad.min-1, 10,838 rad.min-1)- Noise level
Max.: 77 dB
Min.: 60 dB
Description
Goal post mounts can be used vertically or horizontally.
We use high-grade zinc-plated hardware and a durable powder coated finish. Use indoor or outdoor! Add an oscillator or misting feature for even better performance.
A goal post mount can be used with our 16″, 22″ or 30″ diameter blade fans.
16 gauge steel dual venturi/housing
1 phase or 3 phase motor
High-grade zinc-plated hardware
Aluminum blades
7 gauge steel mounting material
3/8 inch spaced concentric steel wire guards that meet OSHA requirements
Powder coated for durability
Goal Post Mounts can be used indoor and outdoor. Ideal for most uses in cooling and pushing air over a large space. Most commonly paired with an oscillator, adding a misting ring lends even more cooling to your patrons.
Additional information
Size -
16" Fan, 22" Fan, 30" Fan
HP -
1/2 HP, 1 HP, 2 HP, Let's Discuss
Motor Options -
1 phase, 3 phase, Let's Discuss
Accessories -
Mister, Indoor Oscillator, Outdoor Oscillator, None
