Floor-standing fan AM-16PMaxialcoolingsteel
Add to favorites
Compare this product
Characteristics
- Installation
- floor-standing
- Configuration
- axial
- Function
- cooling
- Material
- aluminum, steel
- Other characteristics
- industrial, outdoor
- Air flow
Max.: 12,750 ft³/min
(361.04 m³/min)Min.: 3,700 ft³/min
(104.772 m³/min)- Diameter
16 in, 22 in, 30 in
- Rotational speed
1,150 rpm, 1,725 rpm
(7,226 rad.min-1, 10,838 rad.min-1)- Noise level
Max.: 77 dB
Min.: 60 dB
Description

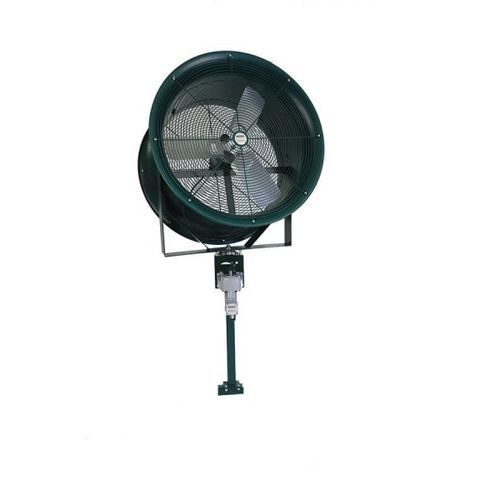

Pole mount fans are most commonly purchased with an oscillator for maximum air cooling in industrial and outdoor settings.
The pole mount consists of three square poles most usually installed in the ground on a golf course, in a warehouse or other large areas like a sports field.
We use high-grade zinc-plated hardware and a durable powder coated finish for long-lasting performance.
All mounts are available with our 16″, 22″ or 30″ diameter fans.
AirMax® Fans specs:
16 gauge steel dual venturi/housing
1 phase or 3 phase motor
High-grade zinc-plated hardware
Aluminum blades
7 gauge steel mounting material
3/8 inch spaced concentric steel wire guards that meet OSHA requirements
Powder coated for durability
Pole Mount Fans are most commonly used with an oscillator. Perfect for golf course cooling, warehouse cooling, or in amusement parks.
Additional information
Size -
16" Fan, 22" Fan, 30" Fan
HP -
1/2 HP, 1 HP, 2 HP, Let's Discuss
Motor Options -
1 phase, 3 phase, Let's Discuss
Accessories -
Mister, Indoor Oscillator, Outdoor Oscillator, None
