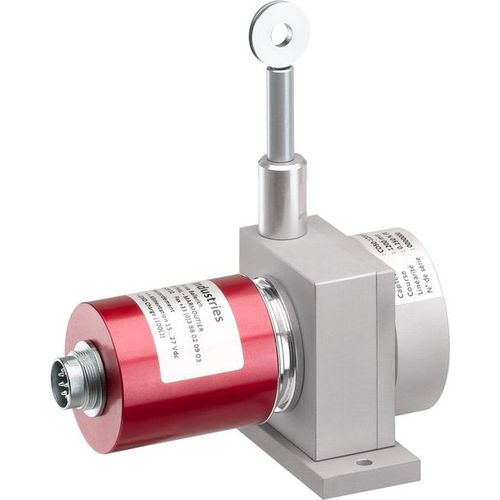

draw-wire position sensor / magnetic / potentiometer / mechanical
CD50

{{requestButtons}}

Characteristics

  • Type:

    draw-wire

  • Technology:

    magnetic, potentiometer, mechanical, optical

  • Output signal:

    analog, digital, CANopen, PROFIBUS, SSI, EtherCAT, Ethernet, serial

  • Other characteristics:

    compact, rugged, absolute, precision, incremental, IP67, IP54

  • Applications:

    for cylinders, industrial, for harsh environments, for valves, for robotics, for welding applications

  • Measuring range:

    Max.: 1,250 mm

    Min.: 0 mm

Description

Linear potentiometer displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to the movement of the mobile. The sensor provides a direct ohmic value from 0 to 1 kOhm.
