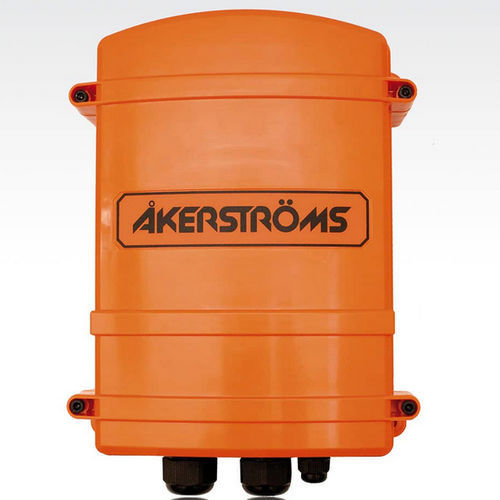

Radio receiver Remotus RX161
for radio remote controlwith relay outputIP67

radio receiver
radio receiver
Add to favorites
Compare this product


Characteristics

Type
radio
Applications
for radio remote control
Other characteristics
with relay output, IP67

Description

Receiver for hoists, cranes, pumps and other control The Remotus RX161 receiver is pre-programmed with 16 different application programs. 16 outputs, 4 alternating relays and 12 open relays, of which 6 safety relays. Can be expanded with an additional 16 relays. The receiver has a multi-transformer for universal use. The receiver is rated to safety class IP67. *Technical data No. of outputs: 16 outputs; 4 alternating and 12 open contacts incl. 6 safety relays. Stop outputs: 2 safety relays, safety parameters per EN ISO 13849-1: Cat 3, Pl d Inputs: 1 analogue input 0(4)-20mA or 0(2)-10V. 1 serial input: RS422/RS485 2 opto isolated digital inputs for 24/48V AC/DC, 115V AC or 230V AC 50/60Hz Radio frequency - 433-434 MHz;406-470 MHz Power consumption: max 12 VA Temperature range: -25 to +55°C Enclosure: Fireproof plastic (UL 94 5VA) Protection class: IP67 Dimensions: 277 x 217 x 115 mm Weight: 1.5 Kg Supply voltage: 24/48/115/230V AC or 24V DC
